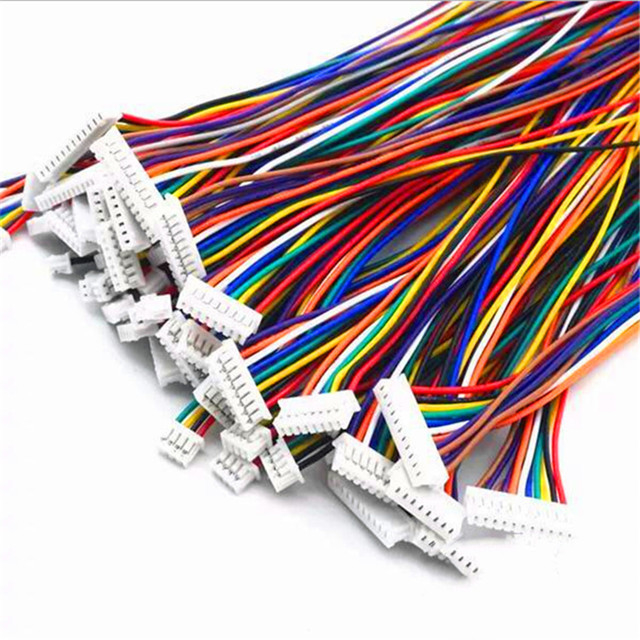

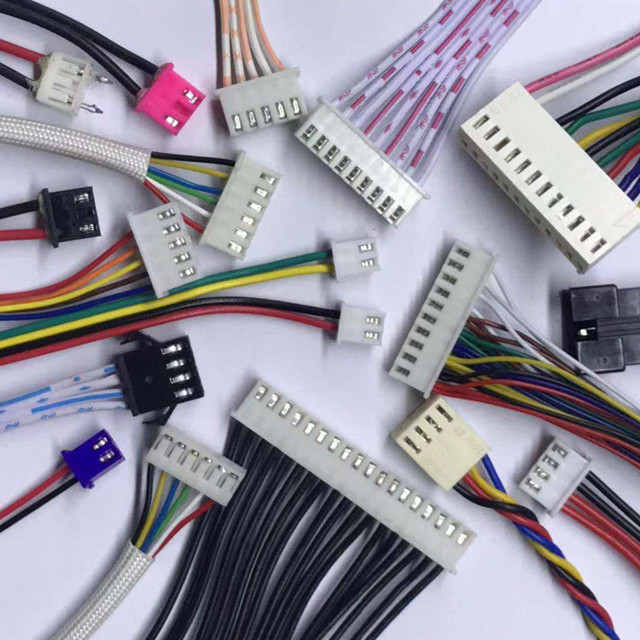

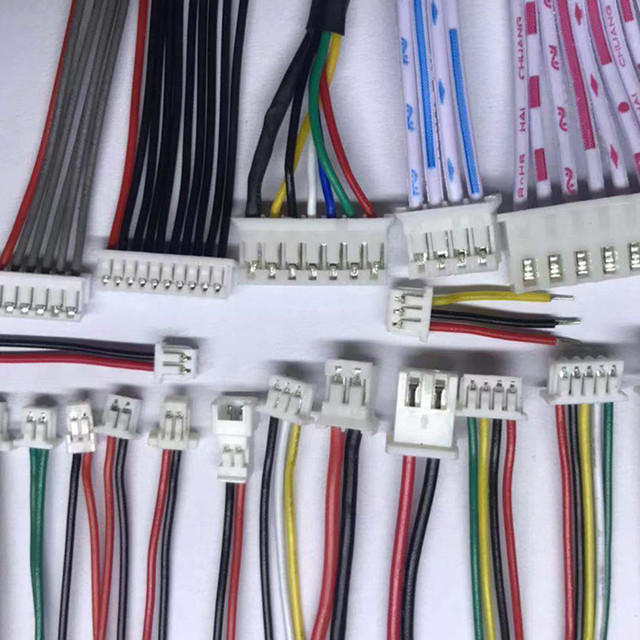

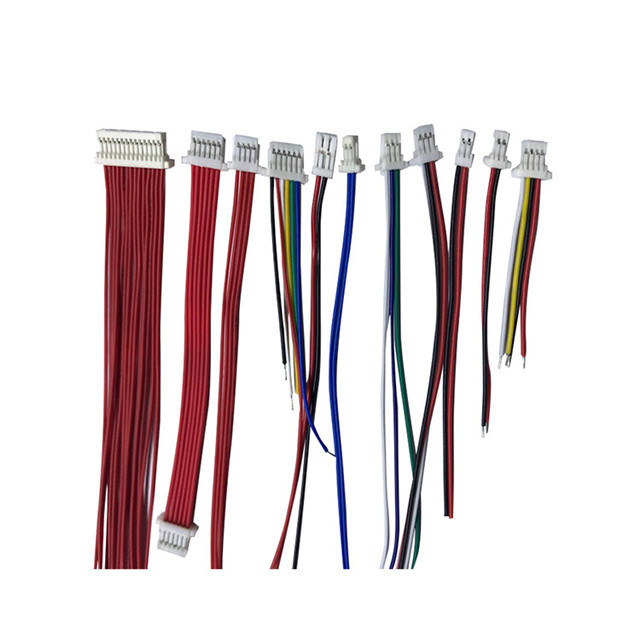

Pressing 2.54Mm UL1015 Electrical Wiring Harness For LCD display

JST MOLEX SUR SH GH PH ZH XH VH 51021 51146 0.8 1.25 2.0 2.54 MM Custom Cable Assembly

Electrical Characteristics:

UL Standard Specification For Electronic Wires

UL1007,300V 80 °, Wire 32awg-16awg, single or bare copper, tinned copper wire, standard UL758 -. Internal connecting wire of electronic and electrical equipment,

UL1015,600V 105 ° 32awg-10awg, single or bare copper, tinned copper wire, standard UL758. Internal connecting wire of electronic and electrical equipment,

UL1032 ,1000V 90 ° 30awg-4awg, single or bare copper, tinned copper wire, standard UL758. Internal connecting wire of electronic and electrical equipment

UL1061,300V 80 ° 30awg-16awg, single or bare copper, tinned copper wire, standard UL758. Internal connecting wire of electronic and electrical equipment

UL1185,300V 80 ° Single core shielded wire, 30-4awg single or bare copper, tinned copper wire, used in recording and playing system, electronic circuit, etc

UL1429,150V 80 ° Cross linked PVC wire 30-16awg, single or bare copper, tin plated copper wire standard UL758 internal connecting wire of electronic and electrical equipment

UL1430,300V 105 ° Cross linked PVC wire 30-16awg, single or bare copper, tin plated copper wire standard UL758 internal connecting wire of electronic and electrical equipment

Ul1431 600V 105 crosslinked PVC wire 30-16awg, single or bare copper, tinned copper wire standard UL758 internal connecting wire of electronic and electrical equipment

UL1704,300V 150 ° 32-10awg silver, tin, nickel plated soft copper wire, wire aviation metallurgy Petroleum Instrument, transformer motor lead out

Ul2096 multi core shielded wire 300V 80 degree 30-16awg stranded bare copper, 2-8-core, tinned copper wire, electrical electronic internal connector, UL758

Ul2405 double core shielded wire, 300V 80 degrees, 30-16awg computer, audio visual equipment internal wire

UL2464,300V 80 ° Computer wire, unshielded, single shield, double shield, 30awg-18awg stranded bare copper, tinned copper wire, internal and external connecting wire of electronic and electrical appliances

UL2468,300V 80 ° Wire arrangement, 30wag-16awg single, stranded copper wire, internal connection wire of electrical computer

UL2517/2464/20276-SSS,300V 105 ° 28-16awg mobile cable, electronic appliance, general cable, robot cable

UL2547,80 ° Multi core shielded cable 80 degree, 30-16awg 2-3-core, recording and playing audio electronic system

UL2651 line 300V 105 degree gray row color line, used for IDC connector to cooperate with PIC 2.54/2.0/1.27/1.0mm

Ul2678 ata300v 105 degree grey line for ATA connector with patch 0.635mm

UL2725,30V 80 ° 30-28awg 2-13 core for internal and external connection of audiovisual electronic equipment for class 2 systems

Ul2835 30V 60 degrees, shielded, unshielded, 32-22awg for internal connection wire, game line of class 2 circuit and electronic equipment

Ul2851 30V 80 degrees

Ul3854 30V 80 degrees

UL2919,30V 80 ° Low voltage computer line, 1+4, 3+4, 5, 6, 7,,, RGB display, electronic computer, commercial computer

Ul2960 30V 60 degree low voltage computer cable

Ul2969 30V 80 degrees

UL20276,30V 80 ° Multi core computer cable, 25p for internal and external connection wire of class 2 electronic equipment

Ul3173 600V 125 degree halogen free cross-linking wire internal connection line of electrical equipment

Ul3265 150V 125 degree, halogen free cross-linking wire, internal connection wire of electronic appliances

UL3266,300V 125 ° Halogen free cross-linking wire, 32-10awg internal connection wire of electronic appliances

Ul3271 600V 125 degree, halogen free cross-linking wire, internal connection line of automobile or electrical equipment

Ul3275 halogen free cross-linking wire, 1000V 105 degree, internal connection wire of electrical equipment 26awg-9awg

Ul3302 halogen free cross-linking wire, 30v105 degree internal type 2 circuit connection wire

Ul3363 halogen free reinforced cross-linking wire, 300V 125 degree, internal connection line of electronic and electrical equipment

Ul3385 halogen free cross-linking wire, 300V 105 degree internal connection wire of electronic appliances

Ul3386 halogen free cross-linking wire 600V 105 degree internal connection wire of electronic appliances

Ul20851 halogen free HDMI multimedia cable 30V 80 degrees,

Ul20855 halogen free DVI cable

Ul21088 halogen free IEEE1394 high speed interface link line

Details:

Our Company:
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.

2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.

3. Quality is important for us and for the customer, the client’s demand is more supreme. We create an easier, less costly and extremely satisfactory way of business. Striving to achieve improving results through our continuous innovating and technical engineer’s effort, we create values to turn the antenna / Cable / Harness to your exact demand.

4. We guarantee every antenna / Cable / Harness we offered must be tested by network analyzer / Precision Low Voltage Wire Tester to ensure the perfect quality before delivery. Cooperated with many overseas clients from over twenty countries, we will be your ideal OEM/ODM partner.

Our Advantages:
1. Nearly 10 years of rich marketing experience and has sufficient supplies and materials.

2. Financially sounded and has the continuous line service from R&D to designing, manufacturing and marketing.

3. Our products have a wide field of applications including industry, communication, information, automobiles, computer peripherals.

4. Competitive price,We devote ourselves in providing products with market differentiation and high performance.

5. We reduce the impact and damages caused to the environment, abide international environmental regulations and seek to be green and eco-friendly.

FAQ:
1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.

2. Do you have stock?
 We don’t have stock; we’ll start production after receiving PO.

3.What's information do you need for quoting?
For Cable harness, please advise cable specs, part number, or send drawings.
For Connectors, please kindly advise series pins, male or female, molded, field assembly panel mount type and cable length.

4. What's your payment terms?
100 % T/T before delivery

5. What is your terms of delivery?
We are accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or most cost-effective for you.

Payment:

Packaging & Shipping:

1. Usually we ship your order by sea or by air.
2. We do our best to ship your order within 1 week after receiving your payment
3. We'll tell you the tracking number once your order has been sent.

4. We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal.
