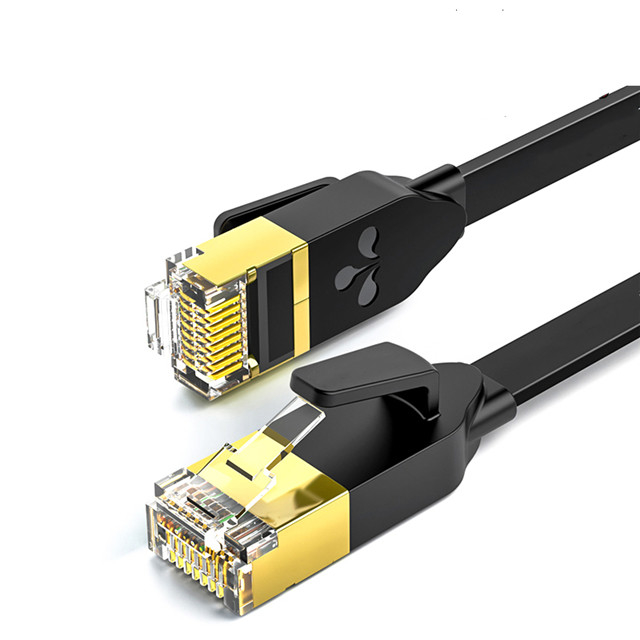

3m Flat Network Cable 10 Gigabit Cat7 Pure Copper Broadband Network Patch Cord

3m Flat Network Cable 10 Gigabit Cat7 Pure Copper Broadband Network Patch Cord

Broadband Network Patch Cord

Cat7 Network Patch Cord

10 Gigabit ethernet patch cable

Place of Origin:

China

Brand Name:

RY

Certification:

ROHS/CE/ISO

Model Number:

RY-RJ45-CAT7-524-2

Contact Us

Request A Quote
Product Details
Type:
RJ45-CAT7/ Indoor
Conductor Material:
Copper
Jacket Color:
Black/Yellow/Red/White
Jacket Material:
PVC
Length:
1M/2M/3M/5M/CUSTOM
Application:
Networking
Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
USD0.8-8.8
Packaging Details
PE bag+export carton
Delivery Time
15-25days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
10000 Pieces per week
Product Description



HIGH-QUALITY 3M FLAT NETWORK CABLE 10 GIGABIT CAT7 HIGH-SPEED PURE COPPER BROADBAND SHIELD FOR HOME NETWORK CABLE



The CAT7 cable supports up to 600MHz frequency bandwidth and also supports 10GBASE-T Ethernet. In addition, the CAT7 cable significantly reduces cross-talk noise compared to the CAT6 and CAT6A cables

1. Adopt high quality and environmental protection PVC coating, excellent tensile resistance, environmental protection, wear resistance, oxidation resistance.
2. Widening the design of the guard card, you can plug and remove it with a simple press, carefully care for your fingers, and effectively protect the shrapnel of the crystal head.
3. Selection of high purity oxygen free copper (OFC) conductor conductor core, low impedance, good transmission effect. The standard transmission rate is 100Mbps and the transmission frequency is 100MHz.
4. Adopt environment-friendly TPE elastic wire, with good extensibility, better protect the wire core.
5. Crystal head with 50μm gold plating, good contact and transmission performance, with good oxidation resistance, no rust, no blackening.

Key Specification:

Specification
Cable Spec
CAT7 32AWG 30AWG 28AWG 4pairs
Cable Length
6ft, 10ft, 15ft, 25ft, 50ft, (Custom Length available)
Color
Black, Beige ,Blue(Custom Color available)
Diameter
OD:1.5*6.5mm
Wire Gauge
32AWG 30AWG 28AWG 26AWG
Conductor
bare copper(BC),Tin plated copper(TC)(optional)
Certificate
RoHS,UL,CE,FCC
Plug mould
PVC molding, plastic shell , metal shell
Connector
gold-plated
Electrical Properties
Quality Control
100% open & short test
Voltage
DC300V 5M ohm/10ms
Insulation Resistance
10M min
Contact Resistance
2 ohm max
Working Temperature
-25C-80C
Data transfer rate
10.2Gbps Max
Differential Impedance
100±10Ω(TDR)
Complies with
TIA/EIA 568B standard



1. RJ45 crystal head is a connector with 8 pins, which is mainly used in Ethernet. "RJ" represents the registered jack, "45" represents the serial number of interface standard. RJ45 crystal head is usually terminated on Ethernet cable to connect various network devices, such as computers, routers, switches, etc.

2. RJ45 crystal head is a connector with 8 grooves and 8 contacts (8p8c), while RJ11 crystal head usually has only 6 grooves and 4 contacts (6p4c), so the volume of RJ45 crystal head is larger than RJ11 crystal head. RJ11 crystal head can usually be inserted into RJ45 interface, otherwise it can't, but it is strongly recommended not to use RJ11 crystal head for RJ45 interface.

Pertinent Details:

3m Flat Network Cable 10 Gigabit Cat7 Pure Copper Broadband Network Patch Cord 0



Our Company:
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.

2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.



3. Quality is important for us and for the customer, the client’s demand is more supreme. We create an easier, less costly and extremely satisfactory way of business. Striving to achieve improving results through our continuous innovating and technical engineer’s effort, we create values to turn the antenna / Cable / Harness to your exact demand.


4. We guarantee every antenna / Cable / Harness we offered must be tested by network analyzer / Precision Low Voltage Wire Tester to ensure the perfect quality before delivery. Cooperated with many overseas clients from over twenty countries, we will be your ideal OEM/ODM partner.



Our Advantages:
1. Nearly 10 years of rich marketing experience and has sufficient supplies and materials.

2. Financially sounded and has the continuous line service from R&D to designing, manufacturing and marketing.

3. Our products have a wide field of applications including industry, communication, information, automobiles, computer peripherals.

4. Competitive price,We devote ourselves in providing products with market differentiation and high performance.

5. We reduce the impact and damages caused to the environment, abide international environmental regulations and seek to be green and eco-friendly.

FAQ:
1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.

2. Do you have stock?
We don’t have stock; we’ll start production after receiving PO.

3.What's information do you need for quoting?
For Cable harness, please advise cable specs, part number, or send drawings.
For Connectors, please kindly advise series pins, male or female, molded, field assembly panel mount type and cable length.

4. What's your payment terms?
100 % T/T before delivery

5. What is your terms of delivery?
We are accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or most cost-effective for you.

Payment:
3m Flat Network Cable 10 Gigabit Cat7 Pure Copper Broadband Network Patch Cord 1
Packaging & Shipping:

1. Usually we ship your order by sea or by air.
2. We do our best to ship your order within 1 week after receiving your payment
3. We'll tell you the tracking number once your order has been sent.

4. We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal.
