Right Angle Elbow RG316 RF Connection Cable Brass Gold Plating

Product Details:
Place of Origin: China
Brand Name: RY
Certification: CE,ROHS
Model Number: RY-20210624
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: negotiation
Packaging Details: 1pc/polybag packaging
Delivery Time: Shipped in 3 days after payment
Payment Terms: L/C, T/T,Paypal, Western Union, MoneyGram
Supply Ability: 10000pcs
Contact Now

Detail Information

Gender: MCX Type: Coaxial
Impedance: 50ohm Cable Type: RG178
Application: RF Device Plating: Nickel Or Gold
High Light:

RG316 RF Connection cable


Elbow RF Connection cable


Elbow rg316 coaxial cable

Product Description

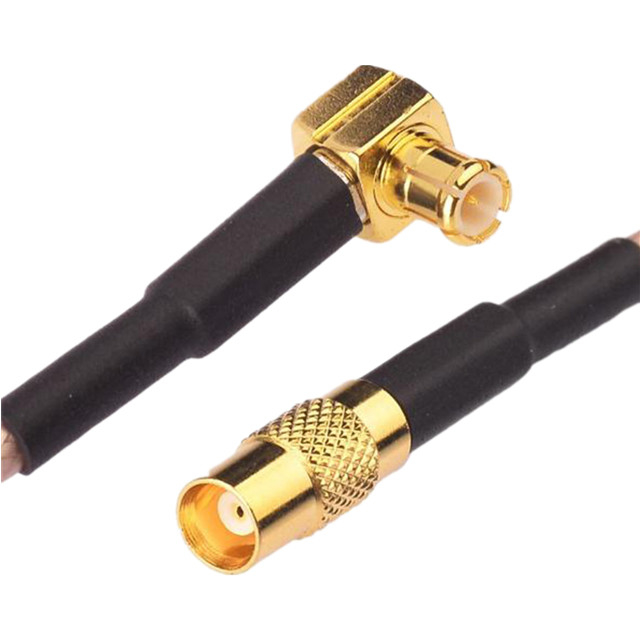

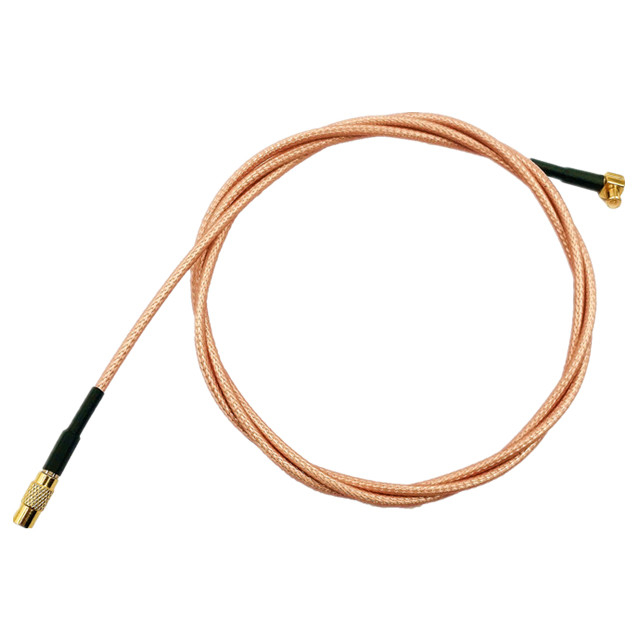

MCX Male To Female High Frequency Wiring Right Angle Elbow RG316 RF Connection To Extend The Feeder To Female


MCX connector ?

MCX RF coaxial connector was designed as OSM connector by Bendix company and omni spectrum company in the late 1950s. It was one of the most commonly used RF / microwave connectors at that time. Initially, MCX connectors were designed for 0.141 "semi-rigid coaxial cables and precision connectors for microwave applications in the military industry, filled with polytetrafluoroethylene. Under the conditions at that time, MCX connector was quickly popularized because of its small volume and high frequency (the frequency range of semi-rigid cable is DC ~ 18GHz; the frequency range of flexible cable is DC ~ 12.4ghz). Even later developed millimeter wave connectors (such as 3.5mm, 2.92mm) also consider their mechanical compatibility.

3.5mm connector:

The 3.5mm connector is a connector with inner diameter of outer conductor of 3.5mm, characteristic impedance of 50 Ω and connection mechanism of 1 / 4-36uns-2 inch thread. In the mid-1970s, Hewlett Packard and Amphenol company (mainly developed by HP company, and the early production was carried out in Amphenol company) launched a 3.5mm connector with a working frequency up to 33ghz, which is the earliest RF coaxial connector that can be used in millimeter wave band. An obvious difference from MCX connector (including "super MCX" of Southwest microwave) is that 3.5mm adopts air medium.

The outer conductor of 3.5mm connector is thicker than MCX connector, and its mechanical strength is better than MCX connector. Therefore, not only the electrical performance is better than MCXconnector, but also the mechanical durability and performance repeatability are higher than SMA connector, so it is more suitable for testing industry.

2.92mm connector:

2.92mm connector (some manufacturers call it 2.9mm or K-type connector, others call it SMK, KMC, wmp4 connector, etc.) is a RF coaxial connector with inner diameter of outer conductor of 2.92mm, characteristic impedance of 50 Ω and connection mechanism of 1 / 4-36uns-2 British thread. Its structure is similar to 3.5mm connector, but smaller.

1983, wiltron Corporation William.Old.Field On the basis of summing up and overcoming the previous millimeter wave connectors, senior engineers have developed a new type of 2.92mm/k connector (the K connector is a trademark of wiltron company). Its inner conductor diameter is 1.27mm, which can be inserted with MCX and 3.5 connectors. The 2.92mm connector has good electrical performance in the DC ~ 46ghz frequency band, and can be mechanically compatible with MCX connector and 3.5mm connector. It is quickly recognized by the majority of manufacturers and becomes one of the most widely used millimeter wave connectors in the world.

2.4mm connector:

The connector with inner diameter of outer conductor of 2.4mm and impedance of 50 ohm is mechanically compatible with 2.4mm connector, which is 1.85mm connector with inner diameter of outer conductor of 1.85mm and impedance of 50 ohm. Because of their small inner diameter, they work at higher frequencies, with nominal frequencies up to 50GHz and 67ghz respectively. Remember that they must not be connected with 2.92mm, 3.5mm or MCX connectors, otherwise the connector will be damaged directly!


With the rapid development of millimeter wave technology and high-speed communication technology, 2.92mm, 2.4mm and 1.85mm connectors are more and more widely used in military, aerospace, optoelectronic and other fields, and more and more cases are used in combination with gppo, GPO and other connectors.


Electrical Characteristics:







Frequency range




1.3 max



60V AC(rms)


Insulation Resisitance 500 MΩ min.
Insertion Loss

0.3dB max. at 1.0 GHZ/0.5DB max. at 2.0 GHZ








Brass--gold plating


Pin contacts

Brass--gold plating


Socket contacts

Copper-beryllium alloy--Au plating





Cable type




smartphone,tablet PC,wifi antenna,GPS antenna, RF device etc


Temperature range

-40°C to +80°C



Coaxial cable is a kind of wire and signal transmission line, which is generally made of four layers of materials: the innermost layer is a conductive copper wire, the outer layer of the wire is surrounded by a layer of plastic (used as insulator and dielectric), and the outer layer of the insulator is a thin network conductor (generally copper or alloy), and then the outer layer of the conductor is the outermost insulating material as the outer skin. According to the size, coaxial cable has different standard specifications, ranging from 1 / 8 inch to 9 inch diameter.


Product Details:

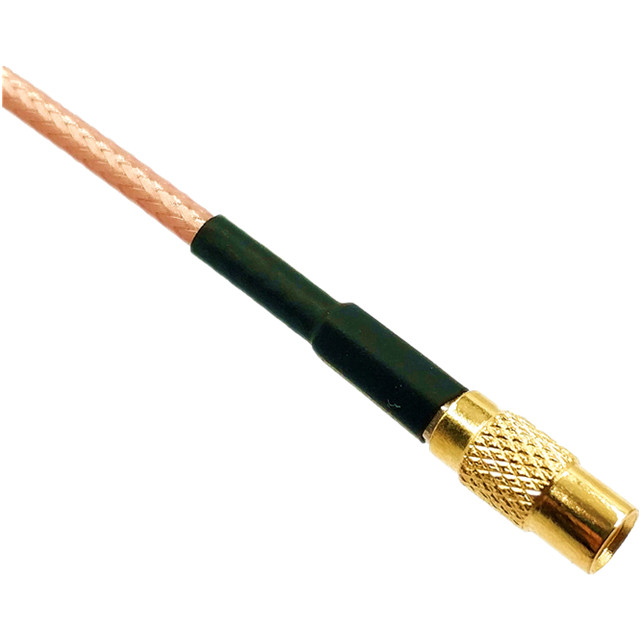

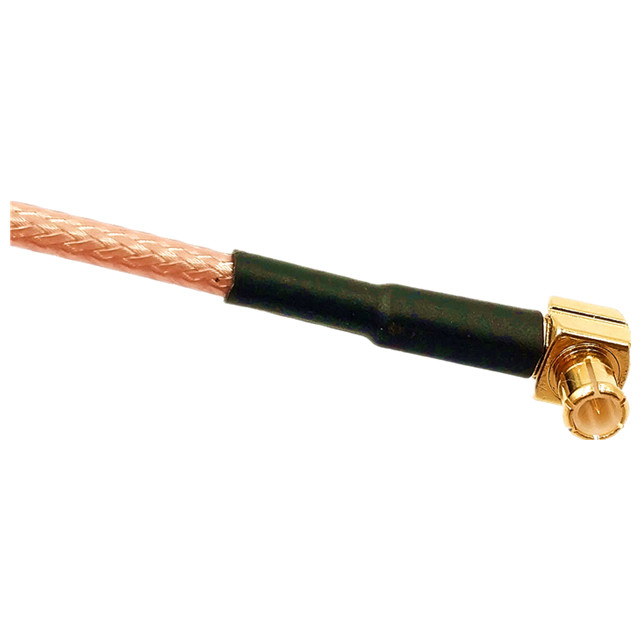

Right Angle Elbow RG316 RF Connection Cable Brass Gold Plating 0Right Angle Elbow RG316 RF Connection Cable Brass Gold Plating 1
