AWM 20706 105C 60V Flexible FFC Extension Cable Arbitrary Folding

AWM 20706 105C 60V Flexible FFC Extension Cable Arbitrary Folding

awm 20706 FFC Extension Cable

105C FFC Extension Cable

awm 20706 ffc cable extender

Place of Origin:

China

Brand Name:

RY

Certification:

CE,ROHS,ISO

Model Number:

RY-ffc-12345

Contact Us

Request A Quote
Product Details
Pin:
2~60Pin
Cable:
AWM 20706
Pitch:
0.5mm,0.8mm,1.0mm,1.25mm,1.27mm,2.0mm,2.54mm
Service:
OEM ODM
Express:
DHL Fedex UPS TNT Postal
Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
USD0.2~1
Packaging Details
40*40*20cm ...etc
Delivery Time
Shipped in 9 days after payment
Payment Terms
L/C, T/T,Paypal, Western Union, MoneyGram
Supply Ability
1000000pcs / Month
Product Description

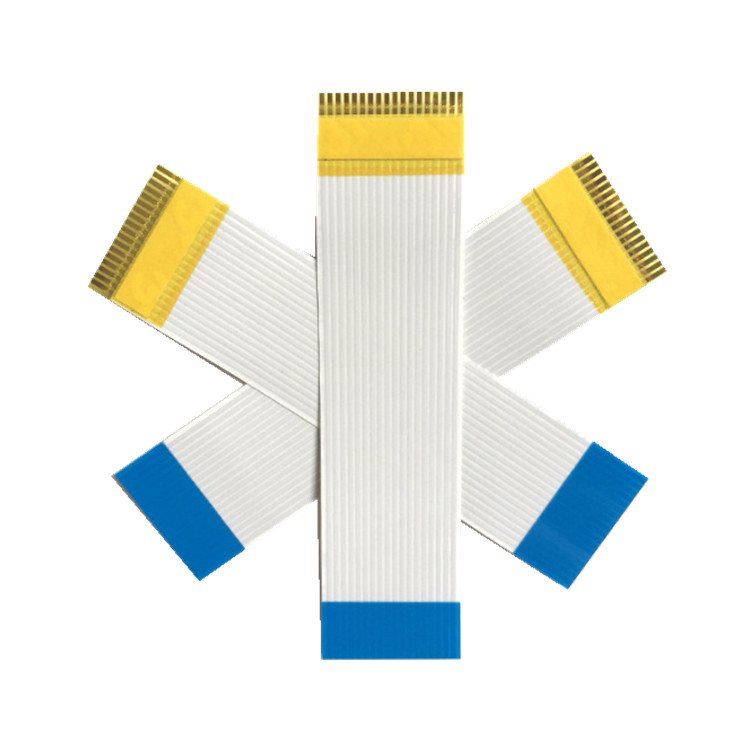

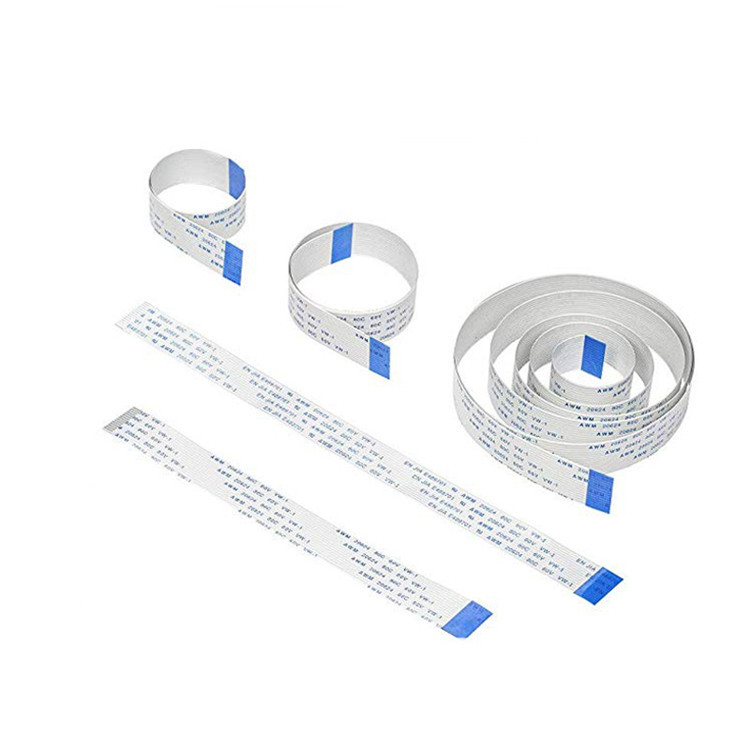

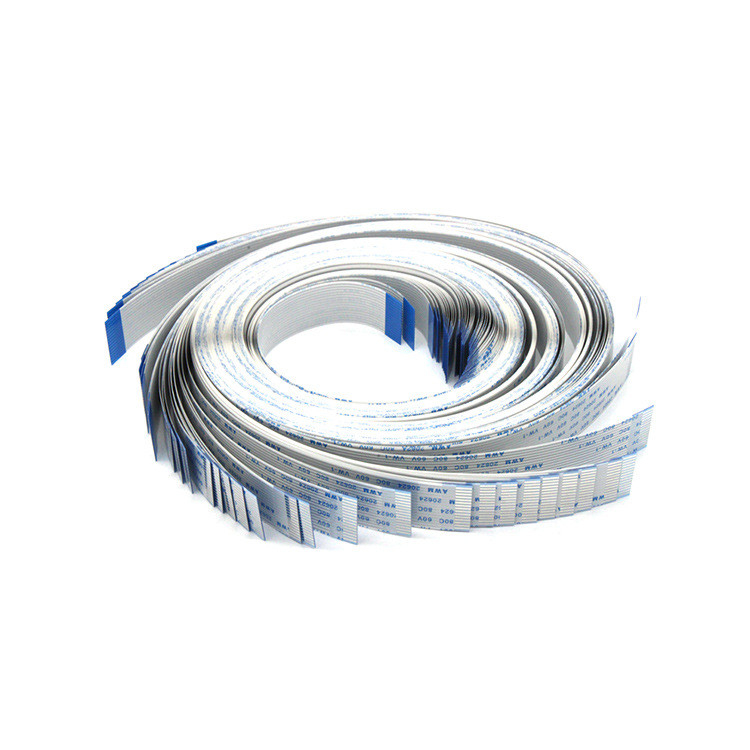

Flexible FFC Extension Extender AWM 20706 105C 60V VW 1 Flat Ribbon Cable



Super soft, arbitrary bending, arbitrary folding, convenient and flexible wiring, simple and beautiful circuit layout ;
* The FFC flexible cable is processed by EMI shielding, which makes the electronic signal transmission more stable and reliable and eliminates interference ;
* After tinning or gold plating, FFC cable is more resistant to oxidation and can adapt to more complex and harsh environments ;



Electrical Characteristics:



Conductor
0.035*0.3, 0.035*3, 0.035*0.65
0.05*0.5, 0.05*0.3, 0.05*0.8, 0.05*0.65
0.1*0.65, 0.1*0.3, 0.1*0.8, 0.1*1.27
Insulation film
0.043, 0.06, 0.1, 0.08
Reinforeing tape
0.16, 0.225, 0.25, 0.28
Sides
Same side contact and opposite side contact
Length
20mm or more (According to customers'request)
Pin contact
2-60 pin (According to customers'request)
Gauge
AWM 20624, 2896, 20706, 20798, 20861, 2094
Sample
For free
Electrical Characteristics
Rated voltage
60V
Reference standard
UL758, UL20624
Mechanical Characteristics
Pitch
0.5mm, 0.8mm, 1.0mm, 1.25mm, 1.27mm, 2.0mm, 2.54mm
Cable type
A, B, C, D, E, F, G, H, I, J, K
Environmental Characteristics
Temperature
15℃~25℃
Humidity
30~60RH%c
Material
Conductor
tinned copper wire
Insulation
PET ribbon parallel cable

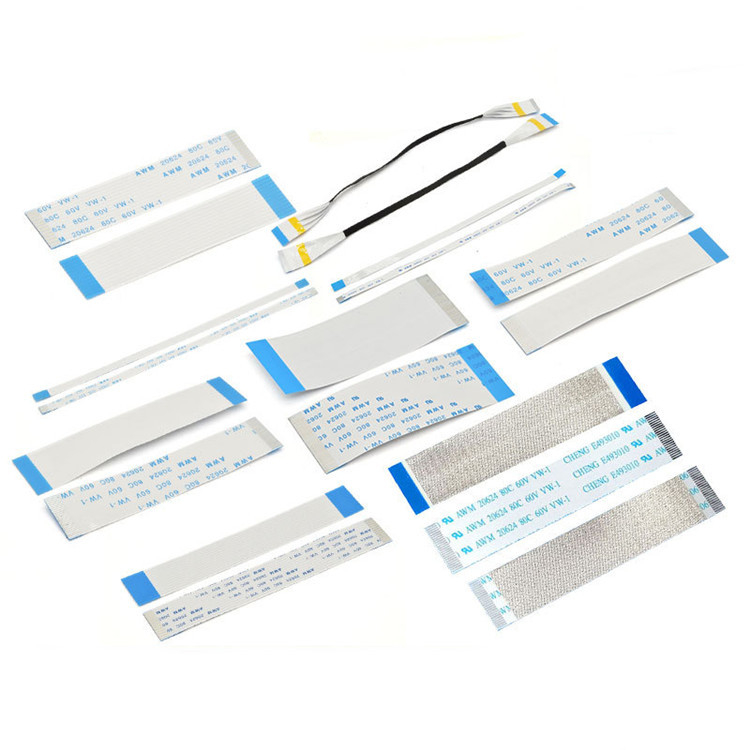

Product Details:



AWM 20706 105C 60V Flexible FFC Extension Cable  Arbitrary Folding 0



Our Company:


1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.

2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.

Our Advantages:


1. Quality control:most of products have UL CE ROHS, certificate. ISO9001:2008.

2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.

3. Fast Delivery Time :2~15 days, On-Time Delivery.

4. Good After-Sales Service: we could offer technical support or return service in short time.

5. OEM/ODM service.

6. We are available with Trade Assurance, you'll enjoy:
•100% product quality protection
•100% on-time shipment protection
•100% payment protection for your covered amount



FAQ:


1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.

2. How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality.



3. How long can I expect to get the sample?
After you pay for the sample charge and we confirm the drawing with each other, the samples will be ready for 3-5 days. The samples will be sent to you via express and arrive in 3-5 days. You can use your own express account or prepay us if you do not have an account.

4. Can you do the design for us?
Yes. We have a professional engineer having rich experience in wire harness & cable assembly design. Just let us know your ideas and we will help to carry out your ideas into perfect products. It does not matter if you do not have someone to complete files. Tell us your detalied SPEC. of products, and we will send you finished drawing for confirmation.

5. What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 10 to15 days. Generally speaking, all of the goods can be reach your address within 4 weeks.

6.  How to ship my order ? Is it safe?
A: For small package, we will send it by Express, tsuch as DHL,FedEx,,UPS,TNT,EMS.That’s aDoor to Door service. For big packages, we will send them by Air or By sea.We will use good packing and ensure the safety.We will be responsible to any product damage caused on delivery.



Packaging & Shipping:

1. Usually we ship your order by sea or by air.
2. We do our best to ship your order within 1 week after receiving your payment
3. We'll tell you the tracking number once your order has been sent.

4. We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal.
