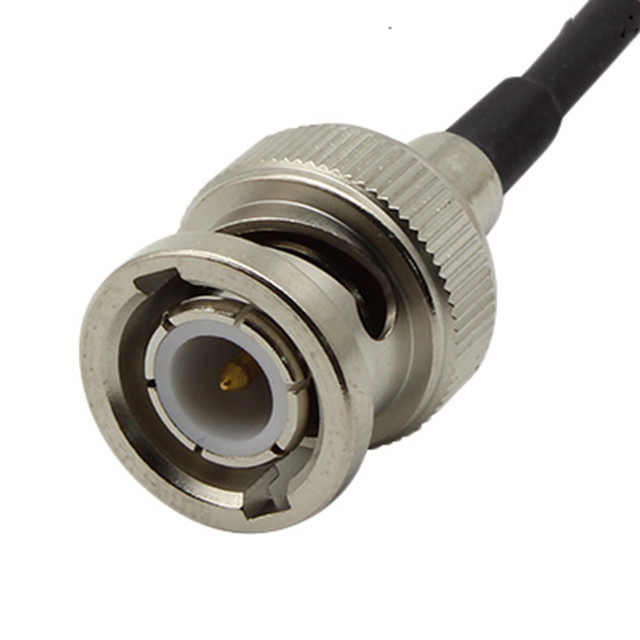

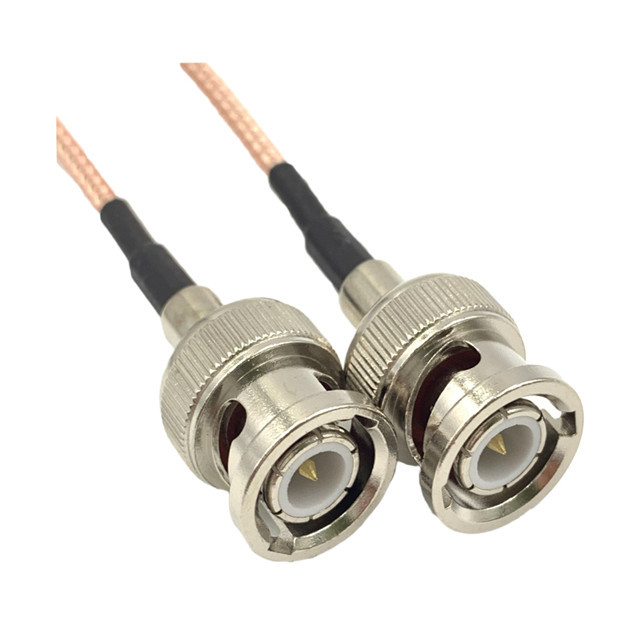

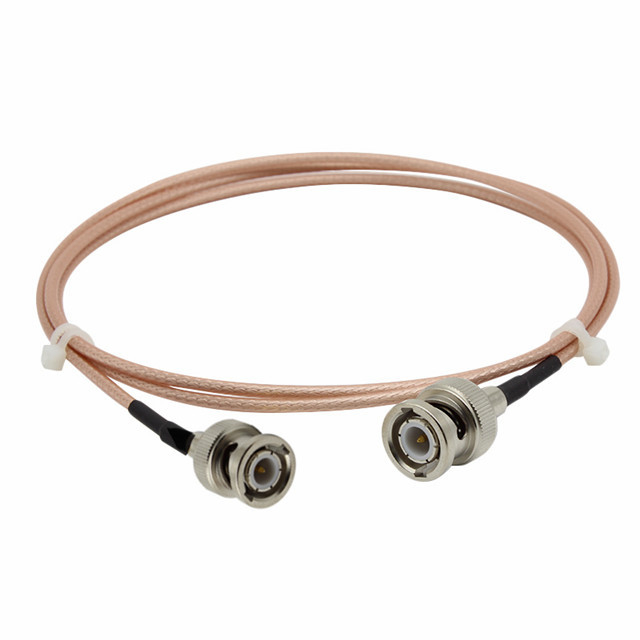

ROHS Copper PVC BNC Male To Male RG142 Coaxial Cable 20cm length

Product Details:
Place of Origin: China
Brand Name: RY
Certification: CE,ROHS,ISO
Model Number: RY-BNCBNC-M-142
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: USD1.2~2.5
Packaging Details: sample carton:17*12*4cm / 42*42*20cm / 70*70*40cm
Delivery Time: Shipped in 9 days after payment
Payment Terms: L/C, T/T,Paypal, Western Union, MoneyGram
Supply Ability: 1000000pcs
Contact Now

Detail Information

Connector: BNC Male Or Customizable Frequency Range: DC-6GHz
Cable Type: RG316/RG174/RG58/RG402 Impedance: 50ohm
Material: Copper +PVC Length: 20cm / Customized
Name: BNC RF Cable Service: OEM ODM
Temperature Range: -40C~+80C
High Light:

BNC RG142 coaxial cable


Male to Male RG142 coaxial cable


ROHS bnc male to bnc male adapter

Product Description


High Voltage rg142 RF Feeder Coaxial Cable With BNC Male to BNC Male Connectors


Coaxial cable is sometimes called RF cable or RF coaxial cable. Coaxial RF cable is the most commonly used structure. Because the inner and outer conductors are concentric, the electromagnetic energy is limited in the medium between the inner and outer conductors, so it has the advantages of small attenuation, high shielding performance, wide frequency band and stable performance. It is usually used to transmit RF energy from 500 kHz to 18 GHz. Coaxial cable has two concentric conductors, and the conductor and shield share the same axis. The most common coaxial cable is composed of copper conductor isolated by insulating material. Outside the inner insulating material is another layer of ring conductor and its insulator, and then the whole cable is wrapped by PVC or sheath. Coaxial cable can be divided into 50 Ω baseband cable and 75 Ω broadband cable.


Electrical Characteristics:


50 Ohm
Frequency range
1.3 max
Insulation Resisitance
500 M Ohm min.
Insertion Loss
0.3dB max. at 1.0 GHZ/0.5DB max. at 2.0 GHZ
Brass--gold/nickel plating
Pin contacts
Brass--gold plating
Socket contacts
Copper-beryllium alloy--Au plating
Cable type
0.81mm,1.13mm,1.37mm,RG178,RG174,RG316,RG58,LMR195,LMR240,LMR400,Semi-rigid,semi-flexible,super flexible, Formable,etc
smartphone,tablet PC,wifi antenna,GPS antenna, RF device etc
Temperature range
-40°C to +80°C/200°C


BNC classification
Purpose classification: BNC sub-wiring type, circuit board type, switching type and connection type
Wiring categories are mainly divided into: (mainly used for monitoring engineering wiring construction)
Cold pressed type, such as: BNC-JC, etc.
Q9 category, such as: BNC-JS, etc. which are divided into welding type and welding-free type
Extrusion type
Assembly type
Compression molding
BNC-Q9 type
BNC-Q9 type
Cold pressed type
Cold pressed type
Compression molding
Compression molding
Circuit boards are mainly divided into: (mainly used for electronic engineering equipment, connecting terminal exits or entrances)
Nut fastening category, such as: BNC-50/75KY JY, etc.
Screw fastening category, such as: BNC-50/75KF JF, etc.
Welding category, such as: BNC-KE BNC-KWE BNC-JE
There is a wide range of adapters: almost all connectors can be converted
Other types include: double pass for connection, terminal plug, etc.
Material classification: can be divided into brass, zinc alloy, stainless steel


Our Company:

1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.
2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.

ROHS Copper PVC BNC Male To Male RG142 Coaxial Cable 20cm length 0


Why Choose Us?

1. We are professional antenna and accessories mamufacturer for 10 years.


2. Our sales manager will reply your inquiry in 24 working hours.


3. Customized design is available, OEM are welcomed.


4. Excellent after-sales service.


1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.

2. Can you do the design for us?
Yes. We have a professional engineer having rich experience in wire harness & cable assembly design. Just let us know your ideas and we will help to carry out your ideas into perfect products. It does not matter if you do not have someone to complete files. Tell us your detalied SPEC. of products, and we will send you finished drawing for confirmation.

3. What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 10 to15 days. Generally speaking, all of the goods can be reach your address within 4 weeks.


Packaging & Shipping:

1. Usually we ship your order by sea or by air.

2. We do our best to ship your order within 1 week after receiving your payment
3. We'll tell you the tracking number once your order has been sent.

4. We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal.
