SMA Male To SMA Male RG174 RF Jumper Coaxial Pigtail Extension Cord

Product Details:
Place of Origin: China
Brand Name: RY
Certification: CE,ROHS,ISO
Model Number: RY-S023
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: USD0.5~3.0
Packaging Details: 40*40*20cm ..45*30*25cm..
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, T/T,Paypal, Western Union, MoneyGram
Supply Ability: 10000000pcs / Month
Contact Now

Detail Information

Type: RG174 Rg58 Lmr200 Lmr240 LMR400 Cable Application: RF, Router, Camera
Material: Nickel-plated Copper Connector 1: SMA Male
Connector 2: SMA Male
High Light:

SMA Male pigtail extension cord


RG174 pigtail jumper cable


LMR400 pigtail jumper cable

Product Description


SMA Male To SMA Male Plug With RG174 RF Jumper Coaxial Pigtail Extension Cable For Antenna


Electrical Characteristics:


RF Cable Assembly/Jumper/Interface Cable Specification
Connector 1 SMA Male
Connector 2 SMA Male
Impedance 50 ohm
Frequency range DC/6GHz
Voltage withstand 2500V maximum
Jacket spark voltage 4000Vrms
Other Cable length 250mm, 300mm, 100cm, 200cm, 500cm or others

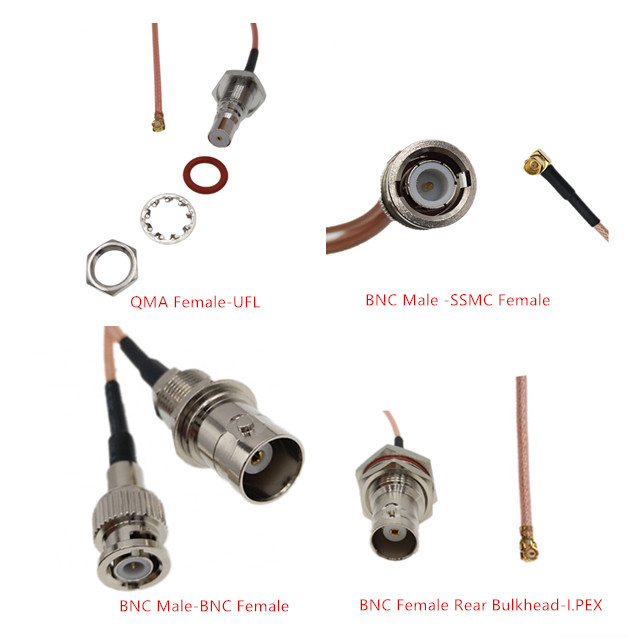

Other connectors BNC, SMB, FME, MCX, MMCX, CRC9, TS9, TNC, etc
Other Cable type RG174, RG58, RG178, LMR100, LMR200, LMR400, et


RF connector, i.e. radio coaxial connector, is an element installed on electricity or instrument. It is used for electrical connection or distribution of transmission line. It is an indispensable key element of coaxial transmission system. Compared with other electronic components, the development history of RF connector is short. The UF connector appeared in 1930 is the earliest RF connector. During the Second World War, the war demand led to the development of radar, radio and microwave communication fields, resulting in medium-sized series such as N, C, BNC, TNC and so on. After 1958, small-sized products such as SMA, SMB and SMC appeared. Until 1964, the general specification for radio coaxial connectors (Mil-C-39012) was issued, RF connectors officially began to develop in the direction of standardization, serialization and generalization.

Product Details:

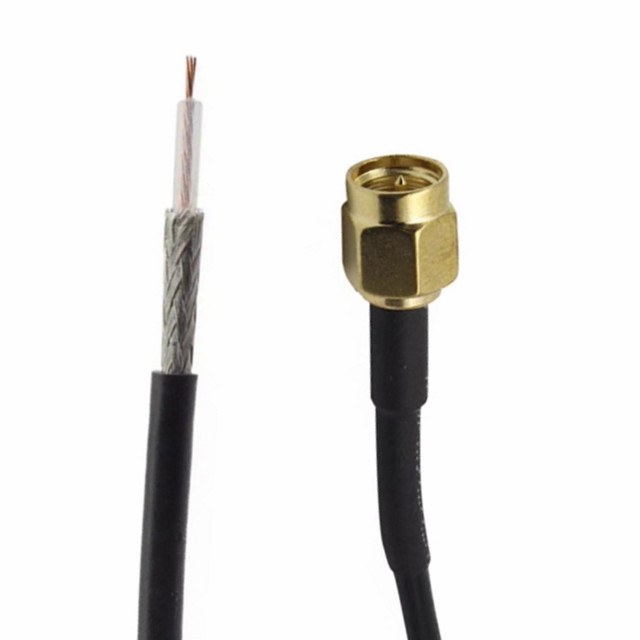

SMA Male To SMA Male RG174  RF Jumper Coaxial Pigtail Extension Cord 0

Our Company:

1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.
2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.


Why Choose Us?

1. We are professional antenna and accessories mamufacturer for 10 years.


2. Our sales manager will reply your inquiry in 24 working hours.


3. Customized design is available, OEM are welcomed.


4. Excellent after-sales service.



1. Manufacturer or trader?
We have been owning a factory since established,The factory keeps developing as our business grows larger.


2. What's your MOQ?
Normally our MOQ is 50pcs. Small order is also available.


3. What about the lead time for production?
3-5 working days for samples, 10-15 working days for bulk order.


4. How is your product quality?
Our raw materials are purchased from qualified suppliers. And we have a strong quality control team


5. What's the warranty?

One year, 12 months.

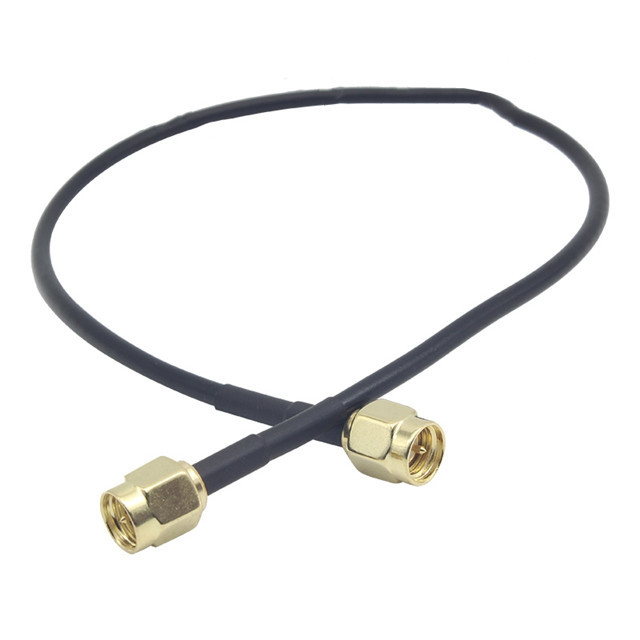

SMA Male To SMA Male RG174  RF Jumper Coaxial Pigtail Extension Cord 1


Packaging & Shipping:

1. Usually we ship your order by sea or by air.

2. We do our best to ship your order within 1 week after receiving your payment
3. We'll tell you the tracking number once your order has been sent.

4. We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal.

SMA Male To SMA Male RG174  RF Jumper Coaxial Pigtail Extension Cord 2
