IP67 Waterproof RF Cable Assemblies With M16*1.0 Rear Bulkhead SMA Male Pigtail Cable

Product Details:
Place of Origin: China
Brand Name: RY
Certification: CE,ROHS
Model Number: RY-2841
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: USD5~USD8.00
Packaging Details: 40*40*30cm...etc
Delivery Time: Shipped in 12 days after payment
Payment Terms: L/C, T/T,Paypal, Western Union, MoneyGram
Supply Ability: 10000pcs
Contact Now

Detail Information

Material: Copper Application: Electronic
Connector 1: SMA Female With M16*1.0 Connector 2: R/A SMA Male
Cable: LM200.,LMR240..etc Length: 200mm Or Other
High Light:

M16*1.0 RF Cable Assemblies

,

SMA Male Pigtail Cable

,

IP67 RF Cable Assemblies

Product Description



IP67 Waterproof SMA Female With M16*1.0 Rear Bulkhead To R/A SMA Male Pigtail Cable



Electrical Characteristics:

Frequency Range:

0 - 6GHz



Impedance:



50Ω±5Ω

Insulation Resistance:



500 MΩ Min

Dielectric Withstanding Voltage:



200V AC/1 Min

Inner Contact Resistance:



20mΩ Max

Outer Contact Resistance:



10mΩ Max

Voltage Standing wave Ratio(VSWR):



1.3 Max (DC~3GHz);1.5 Max (3~6GHz)

Mechanical Durability:



30 Cycles

Relative Humidity:



95% R.H.Max

Operating Temperature:



-40~+85



Product Details:

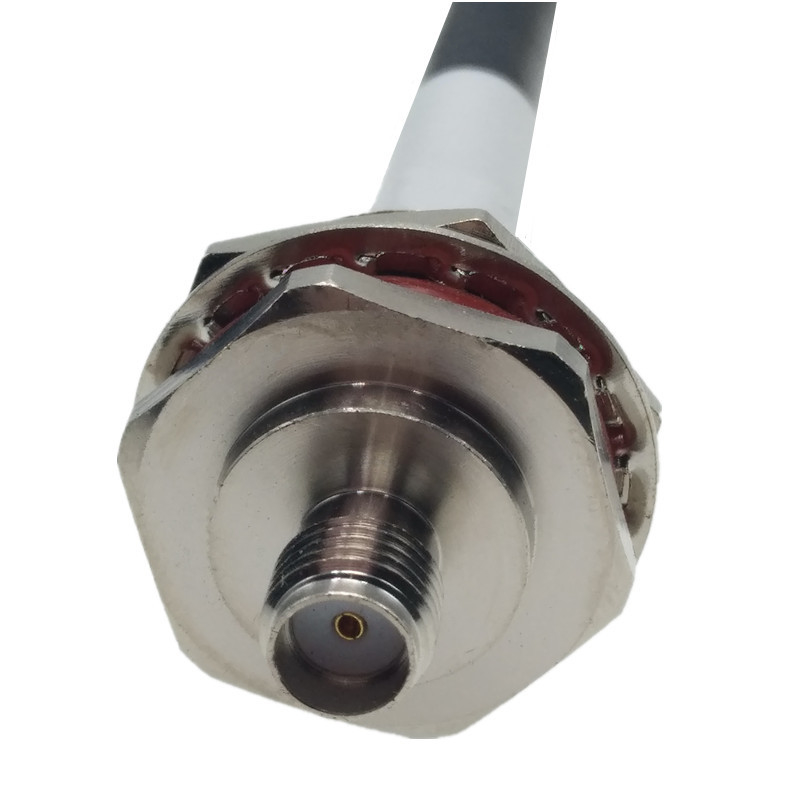

IP67 Waterproof RF Cable Assemblies With M16*1.0 Rear Bulkhead SMA Male Pigtail Cable 0

☀ We focus on coaxial connectors.

☀ Our custom RF cable connectors are built-in and shipped worldwide.

☀ RF cable connectors in 50 ohms can be the following types such as EIA, 7/16 DIN, BNC, FME, MCX, MMCX, N, QMA, SMA, SMB, SMC, SMP, SSMB, TNC, UHF, U.FL and 75 ohms cable assemblies can be made with the following 75 ohms connectors such as BNC, F, N, SMB, SMC, TNC and mini SMB .

☀ RF cable connectors can be connected on the coaxial cable includes: RG141/RG142/RG174/ RG178/RG179/RG180/ RG187/RG196/RG213/RG214/RG218/RG219/ RG223/RG303/RG316/RG316-DS/RG393/RG400/RG401/RG402/RG405/RG58U/1/2 / 7/8 / LMR195/ LMR240/LMR400,ect

☀ RF cable connectors can be produced to cable assemblies with many different cable types and custom lengths depending on your needs and applications.

☀ If you require a special RF cable assembly configuration not found here, you can create your own RF cable assembly configuration by calling our sales department.



Our Company:


1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.

2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.

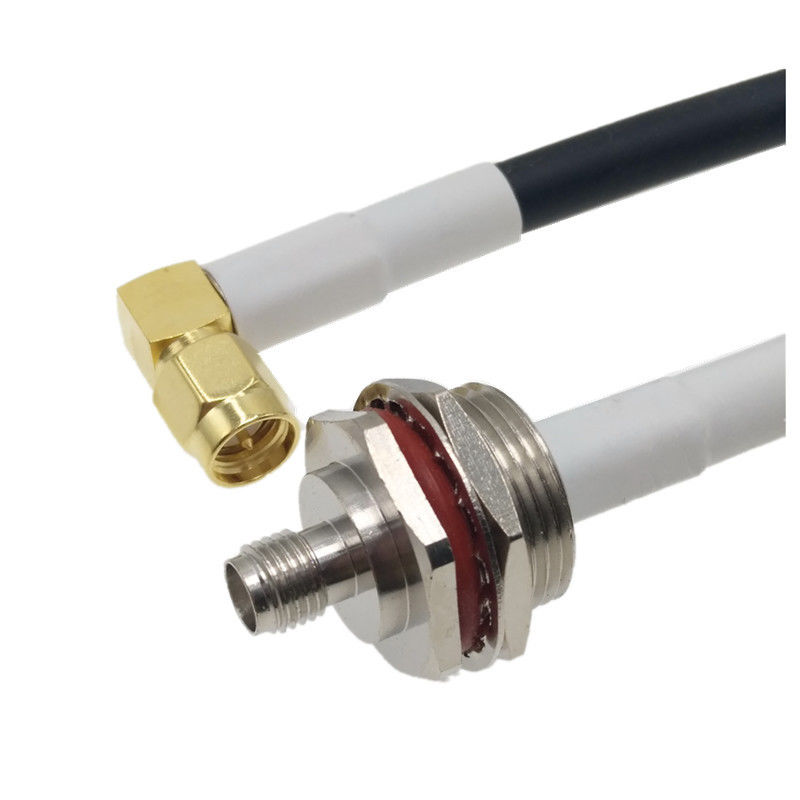

IP67 Waterproof RF Cable Assemblies With M16*1.0 Rear Bulkhead SMA Male Pigtail Cable 1



Related Products:

IP67 Waterproof RF Cable Assemblies With M16*1.0 Rear Bulkhead SMA Male Pigtail Cable 2

IP67 Waterproof RF Cable Assemblies With M16*1.0 Rear Bulkhead SMA Male Pigtail Cable 3



Why Choose Us?

1. We are professional antenna and accessories mamufacturer for 10 years.



2. Our sales manager will reply your inquiry in 24 working hours.



3. Customized design is available, OEM are welcomed.



4. Excellent after-sales service.



Payment:

IP67 Waterproof RF Cable Assemblies With M16*1.0 Rear Bulkhead SMA Male Pigtail Cable 4



Packaging & Shipping:

1. Usually we ship your order by sea or by air.

2. We do our best to ship your order within 1 week after receiving your payment
3. We'll tell you the tracking number once your order has been sent.

4. We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal.

IP67 Waterproof RF Cable Assemblies With M16*1.0 Rear Bulkhead SMA Male Pigtail Cable 5

FAQ:
1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.

2. Can you do the design for us?
Yes. We have a professional engineer having rich experience in wire harness & cable assembly design. Just let us know your ideas and we will help to carry out your ideas into perfect products. It does not matter if you do not have someone to complete files. Tell us your detalied SPEC. of products, and we will send you finished drawing for confirmation.

3. What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 10 to15 days. Generally speaking, all of the goods can be reach your address within 4 weeks.
