Molex 1053071203 2.5mm Flat Ribbon Pitch Cable Harness Electronic

Molex 1053071203 2.5mm Flat Ribbon Pitch Cable Harness Electronic

Flat Ribbon Pitch Cable

Molex 1053071203 Flat Ribbon Cable

flat electronic ribbon cable harness

Place of Origin:

China

Brand Name:

RY

Certification:

CE,ROHS

Model Number:

RY-21443213

Contact Us

Request A Quote
Product Details
Length:
10cm....100cm
Samples:
Available
Connector 1:
Molex 1053071203
Connector 2:
Molex 0022012031
Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
USD1.5~8.8
Packaging Details
Sample Box:17*12*4cm 40*40*20cm..etc
Delivery Time
Shipped in 15 days after payment
Payment Terms
L/C, T/T,Paypal, Western Union, MoneyGram
Supply Ability
10000pcs
Product Description



Molex 105307-1203 1053071203 2.5mm To 0022012031 22-01-2031 2.54mm Pitch Flat Cable



Electrical Characteristics:

Molex 22-01-2031

1. MATERIAL: A - NYLON, UL94V-0, COLOR: WHITE B - NYLON, UL94V-0, COLOR: MOLDED BLACK

2. FINISH: SEE TERMINAL DRAWING

3. PRODUCT SPECIFICATION: PS-10-07.

4. PACKAGING: PER 26950002-PK, 26950001-PK (ONLY FOR 22013047,22013037, 22013027)

5. HOUSING TO BE USED WITH CRIMP TERMINAL SERIES 2759, 6459, 41572. PARTS MADE AFTER 4/19/2012 WILL ALSO ACCEPT 4809 AND 8088 SERIES TERMINALS. FOR USE WITH 22-30 GAUGE WIRE WITH (1.57)/.062 DIAMETER MAXIMUM WIRE INSULATION.

6. LAST CIRCUIT NUMBER NOT PRESENT ON 2-6 CKT AND MAY OR MAY NOT BE PRESENT ON 7-16 CKT SIZES.

7. CIRCUIT NUMBER "1" AND ENGINEERING NUMBER TO APPEAR ON PARTS 3 CKTS AND HIGHER.

8. THIS PART CONFORMS TO CLASS B REQUIREMENTS OF COSMETIC SPECIFICATION PS-45499-002.

9. THE PARTS LISTED ON THIS DRAWING ARE CONSTRUCTED TO MEET THE REQUIREMENT FOR DIRECT SUPPORT OF UNINSULATED LIVE PARTS AS DESCRIBED IN UL508C.

10. THIS DRAWING REPLACES SD-2695



Molex 1053071203

1. MATERIAL: OPTION 1: PA4T, 30% GLASS FILLED, 94V-0, BLACK OPTION

2: PA4T, 30 GLASS FILLED, 94V-0, NATUAL. 2. PRODUCT SPECIFICATION: PS-105300-100.

3. PACKAGE SPECIFICATION: PK-105307-100.

4. THE COMPONENT COMPLIANT TO RoHS DIRECTIVE 2011/65/EU AND ELV DIRECTIVE 2000/53/EC.

5. TO MATE WITH TERMINAL OF 105300-****. TO MATE WITH TPA OF 105325-****. TO MATE WITH HEADER OF 105309-****, 105311-**** AND 105313-****.

6. PARTS CONFORM TO CLASS 'B' REQUIREMENTS OF COSMETIC SPECIFICATION PS-45499-002.

7. APPLICATION SPECIFICATION: AS-105300-100.



Product Details:

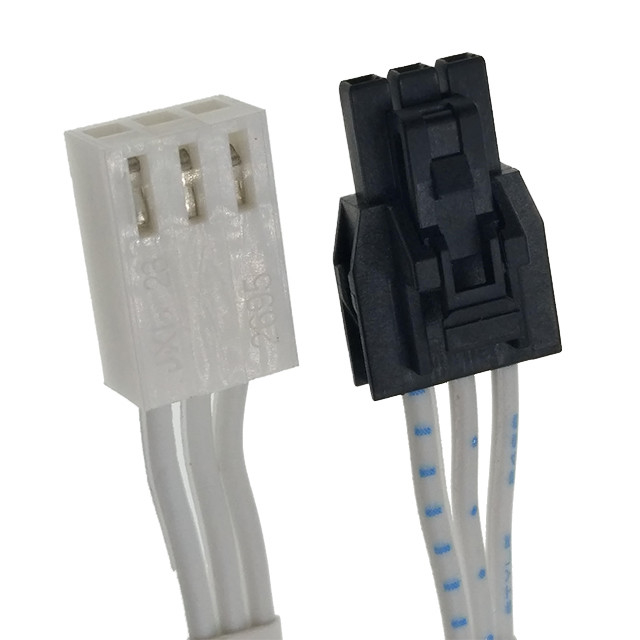

Molex 1053071203 2.5mm Flat Ribbon Pitch Cable Harness Electronic 0

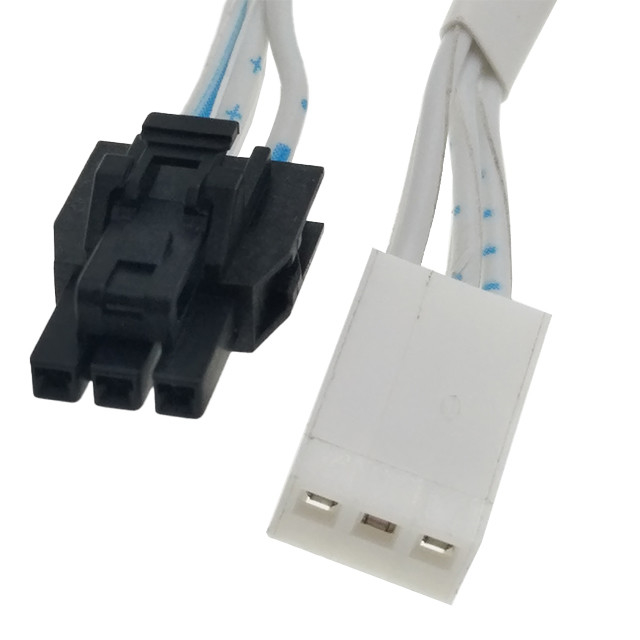

Molex 1053071203 2.5mm Flat Ribbon Pitch Cable Harness Electronic 1

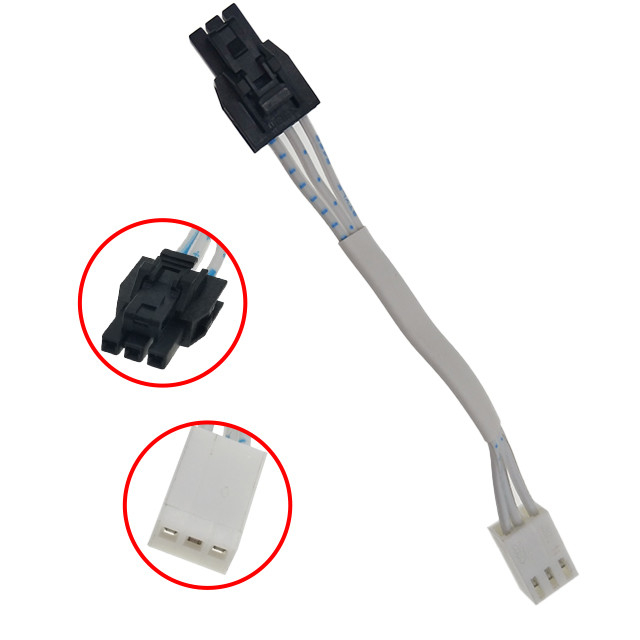

Molex 1053071203 2.5mm Flat Ribbon Pitch Cable Harness Electronic 2

Our Company:

1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.

2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.


Application:
Molex 1053071203 2.5mm Flat Ribbon Pitch Cable Harness Electronic 3

Our Services:

1. Our supply is sufficient to guarantee the customers demand.



2. Our advantages and quick delivery, competitive price, high quality and long term service to out customers.



3. There is a long-term cooperation with the shipping company, can make the goods more quickly and efficiently so that can delivered safely to the designated place as guest.



4. We will provide best after sale service for the guests which try my best to meet the requirement of the guests.1. Our supply is sufficient to guarantee the customers demand.

FAQ:

1. When can I get the price?
We usually quote within 10 hours after we get your inquiry. If you are very urgent to get the price,please call us ortell us in your e-mail so that we will regard your inquiry priority.



2. How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality.



3. How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.



4. What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.


Payment:
Molex 1053071203 2.5mm Flat Ribbon Pitch Cable Harness Electronic 4
Packaging & Shipping:

1. Usually we ship your order by sea or by air.
2. We do our best to ship your order within 1 week after receiving your payment
3. We'll tell you the tracking number once your order has been sent.

4. We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal.
