3.0mm Fiber Optic Patch Cord Sc Upc Single Mode Simplex G652D

3.0mm Fiber Optic Patch Cord Sc Upc Single Mode Simplex G652D

Sc Upc Fiber Optic Patch Cord

3.0mm Fiber Optic Patch Cord

G652D Fiber Optic Patch Cord

Place of Origin:

China

Brand Name:

RY Or OEM

Certification:

CE,ROHS

Model Number:

FC-LC Fiber Optic Cables

Contact Us

Request A Quote
Product Details
Type::
Fiber Optic Patch Cord
Warranty Time::
12 Months
Application::
FTTH
Length::
1m Or Customized
Certification::
CE RoHS FCC ISO9001, Ce
Color::
Yellow Or Customized
Model::
Single Model
Fiber Type::
G652D
Jacket Material::
PVC
Payment & Shipping Terms
Minimum Order Quantity
1000M
Price
USD1.24-1.35
Packaging Details
sc/upc single mode simplex 3.0mm fiber optical patch cord 30x30x30cm for 250pcs
Delivery Time
Shipped in 7 days after payment
Payment Terms
L/C, T/T,Paypal, Western Union, MoneyGram, D/A, D/P
Supply Ability
1000000M
Product Description

PODUCT FEATURES



  • Low insertion loss
  • High resistance of corros
  • Strong interchanging capability
  • High return loss
  • UL standard accessories comply with UL94V-O and ROHS standard
  • Colors identify



PRODUCT APPLICATIONS
  • Telecommunication
  • Ethernet
  • Optic communication System
  • Test equipment
  • Premise Installation
  • FTTH+LAN
  • Optical Fiber CATV
Electrical Characteristics:
Parameters FC, SC, ST, LC, MU, D4, DIN, SMA MT-RJ E2000
PC UPC APC PC PC APC UPC
Mode SM MM SM MM SM SM MM SM SM SM
Insertion loss (dB) ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3
Return loss (dB) ≥45 ≥35 ≥50 ≥50 ≥60 ≥35 ≥25 ≥45 ≥60 ≥50
Repeatability (dB) ≤0.1
Interchangeability(dB) ≤0.2
Service life >1000times
Tensile strength >10kg
Operating Temp(℃) -30℃ ~+75℃ -10℃ ~+75℃
Storage Temp(℃) -40℃ to +85℃

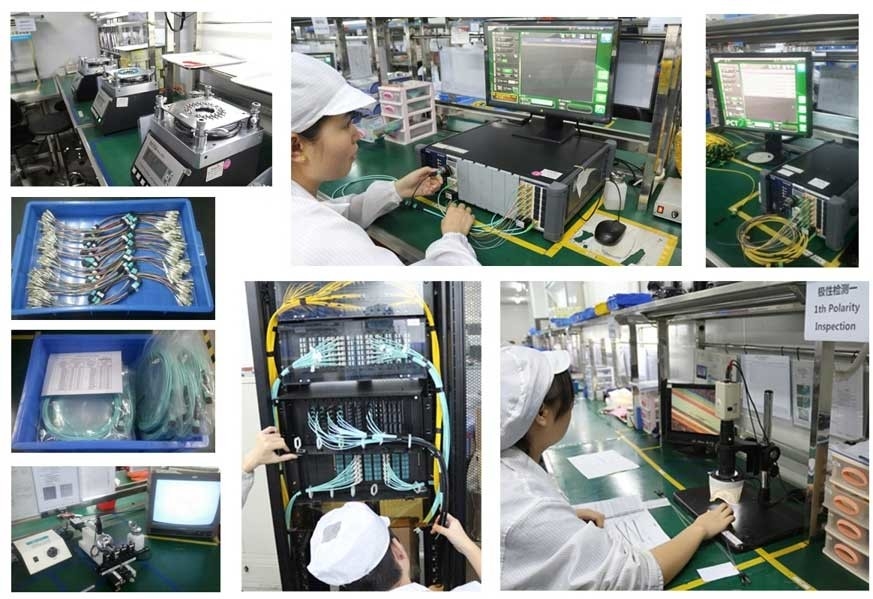

Our Company:

3.0mm Fiber Optic Patch Cord Sc Upc Single Mode Simplex G652D 0
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies
optical fibers cable and antennas router in large or small volumes depending on your needs.

2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.



3. Quality is important for us and for the customer, the client’s demand is more supreme. We create an easier, less costly and extremely satisfactory way of business. Striving to achieve improving results through our continuous innovating and technical engineer’s effort, we create values to turn the antenna / Cable / Harness to your exact demand.


4. We guarantee every antenna / Cable / Harness we offered must be tested by network analyzer / Precision Low Voltage Wire Tester to ensure the perfect quality before delivery. Cooperated with many overseas clients from over twenty countries, we will be your ideal OEM/ODM partner.



5. Being service of many clients from all over the world help us keeping improve our standard to meet different requirement.



Product Details:

3.0mm Fiber Optic Patch Cord Sc Upc Single Mode Simplex G652D 13.0mm Fiber Optic Patch Cord Sc Upc Single Mode Simplex G652D 2

3.0mm Fiber Optic Patch Cord Sc Upc Single Mode Simplex G652D 3

FAQ:

1. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.



2. What is your warranty period?
25 years for fiber optic cable



3. Which kind of certification you have ?
ISO9001, SGS, UL, RoHs.



4. What is your delivery time?
Usually within 7-15 working days


5. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.



6. What is your payment way?
T/T, L/C, Western Union and Paypal.



7. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
