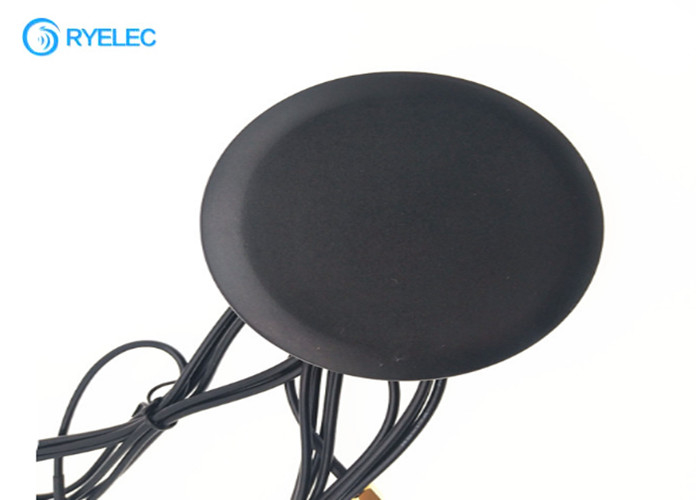

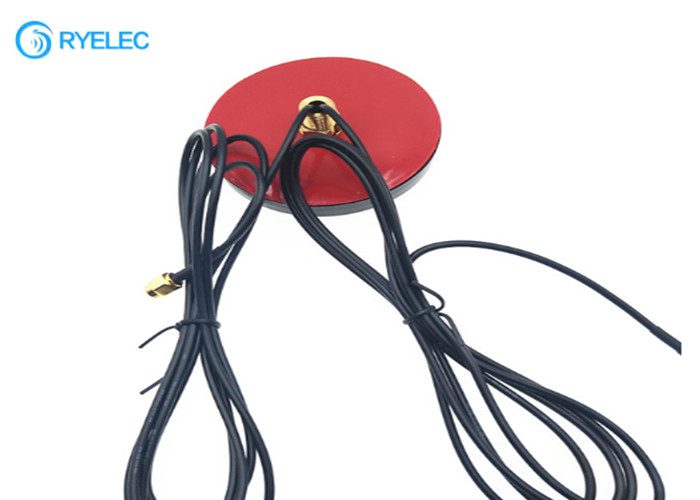

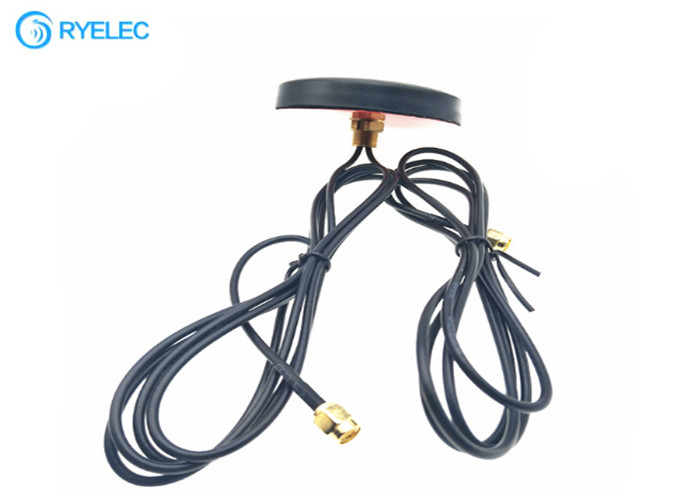

Outdoor Passive Waterproof 4G LTE Antenna For Vehicle Vertical / Horizontal

passive waterproof 2 in 1 4g+4g lte screw glue puck antenna for car/vehicle outdoor

Electrical Characteristic:

Product Overview

Frequency(MHz):690-960/1710-2170/2500-2700(Port1)

690-960/1710-2170/2500-2700(Port2)
VSWR ≤2
Gain(dBi):2-3
Max Input power(W):60
Input Impedance(Ω):50
Polarization :Vertical/Horizontal
Antenna Size(mm):80 mm(D)×13mm(H)
Cable Length(mm):2,3,5 etc.
Cable Type:2*RG174
Connector:2*SMA/N etc.
Mounting :Screw(Hole/Roof)
Housing :Black
Storage Temperature :-45℃ to+75℃
Operating Temperature:-45℃ to+75℃

Product Details:

Download Drawing Here:

RY-LTE-09M.pdf

Our Company:

1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.

2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.

Our advantages:

1. Quality control:most of products have UL CE ROHS, certificate. ISO9001:2008.

2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.

3. Fast Delivery Time :2~15 days, On-Time Delivery.

4. Good After-Sales Service: we could offer technical support or return service in short time.

5. 1 Year Warranty.

6. OEM/ODM service.

7. We are available with Alibaba Trade Assurance, you'll enjoy:
•100% product quality protection
•100% on-time shipment protection
•100% payment protection for your covered amount

Application:

1. The antenna radiates and receives radio waves. However, it is not radio waves that the transmitter sends to the antenna through the feeder. The receiving antenna can not send radio waves directly through the feeder to the receiver, which must go through the energy conversion process. Next, we take the radio communication equipment as an example to analyze the signal transmission process, and then explain the energy conversion function of the antenna.

2. At the transmitter end, the modulated high frequency oscillating current (energy) generated by the transmitter is fed into the transmitting antenna by the feeding device (the feeding device can transmit current wave or electromagnetic wave directly depending on the frequency and form). The transmitting antenna converts the high frequency current or guided wave (energy) into radio wave-free electromagnetic wave (energy) to the circumference. Circumferential radiation (see Figure 1); at the receiving end, radio waves (energy) are converted into high-frequency current or guided waves (energy) through the receiving antenna and transmitted to the receiver via the feeding device. From the above process, it can be seen that the antenna is not only a device for radiating and receiving radio waves, but also an energy converter and an interface device between circuit and space.
