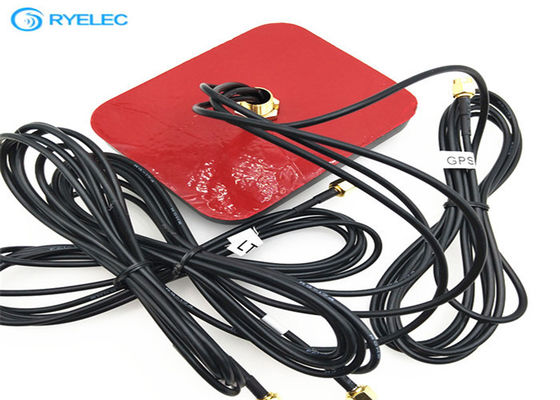

Big Size Wifi Gps 3g 4G LTE Antenna Combo Square Outdoor Screw Adhesive Antenna

Big Size Wifi Gps 3g 4G LTE Antenna Combo Square Outdoor Screw Adhesive Antenna

    • Big Size Wifi Gps 3g 4G LTE Antenna Combo Square Outdoor Screw Adhesive Antenna
    • Big Size Wifi Gps 3g 4G LTE Antenna Combo Square Outdoor Screw Adhesive Antenna
    • Big Size Wifi Gps 3g 4G LTE Antenna Combo Square Outdoor Screw Adhesive Antenna
  • Big Size Wifi Gps 3g 4G LTE Antenna Combo Square Outdoor Screw Adhesive Antenna

    Product Details:

    Place of Origin: China
    Brand Name: RY
    Certification: CE,ROHS
    Model Number: RY-10786175

    Payment & Shipping Terms:

    Minimum Order Quantity: 20
    Price: USD0.88~8.88
    Delivery Time: Shipped in 3 days after payment
    Payment Terms: L/C, T/T,Paypal, Western Union, MoneyGram
    Supply Ability: 10000pcs
    Contact Now
    Detailed Product Description
    Color:: Black Mounting Type:: Embedded,Screw,adhesive,magnetic
    Application:: Indoor/Outdoor Cable Type:: RG174
    Connector:: SMA Type:: Whip,puck,panel





    Big Size 107*86*17.5mm Wifi Gps 3g 4g Lte Combo Square Outdoor Screw Adhesive Antenna



    Key Specification:


    key soecification:
    (1)Dielectric Antenna GPS
    Center Frequency(MHz):1575.42
    VSWR:2
    Bandwidth(MHz):±5
    Impedance(Ω):50
    Peak Gain>3dBi Based on 7cm×7cm ground plane
    Gain Coverage>-4dBi at –90°<0 <+90°(over 75% Volume)
    Polarization:RHCP
    (2)LTE Antenna
    Center Frequency(MHz):698-960/1710-2170/2500-2700
    VSWR:2.0:1
    Impedance(Ω):50
    Typical Gain:2dBi+/-1dBi@850MHz ; 2dBi+/-1dBi@900MHz
    1dBi+/-1dBi@1800MHz;1dBi+/-1dBi@1900MHz::2dBi+/-1dBi@2100MHz
    3dBi+/-1dBi@2600MHz
    Power(W):50
    Polarization:Vertical
    (3)Wifi Antenna 2.4ghz
    Frequency(MHz):2400-2500
    VSWR≤2
    Gain(dBi):2.15
    Impedance(Ω):50
    Power(W):50
    Polarization:VerticalVertical
    (4) 3g antenna
    Center Frequency(MHz):800-1900mhz
    VSWR:2.0:1
    Impedance(Ω):50
    Power(W):50
    Polarization:Vertical
    (5)LNA/Filter For GPS
    LNA Gain(Without Cable) :28 dBi Typical
    Noise Figure(dB):2
    Filter Out Band Attenuation(f0=1575.42 MHz)
    7dB Min f0+/-20MHz;
    20dB Min f0+/-50MHz;
    30dB Min f0+/-100MHz
    VSWR<2.0
    DC Voltage(V)::2.7/3.0/3.3/5.0/3.0 to 5.0 etc.
    DC Current(mA):11 Max
    (6)Mechanical
    Size(mm):107×86x17.5
    CableRG174
    ConnectorSMA etc
    Mounting:Screw(Hole/Roof)
    Housing:Black
    (7)Environmental
    Working Temp:-40℃~+85℃
    Storage Temp:-45℃~+100℃


    Product Details:
    Big Size Wifi Gps 3g 4G LTE Antenna Combo Square Outdoor Screw Adhesive Antenna
    Big Size Wifi Gps 3g 4G LTE Antenna Combo Square Outdoor Screw Adhesive Antenna
    Our Company:
    1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.
    2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.
    Our advantages:
    1. Quality control:most of products have UL CE ROHS, certificate. ISO9001:2008.
    2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.
    3. Fast Delivery Time :2~15 days, On-Time Delivery.
    4. Good After-Sales Service: we could offer technical support or return service in short time.
    5. 1 Year Warranty.
    6. OEM/ODM service.
    7. We are available with Alibaba Trade Assurance, you'll enjoy:
    •100% product quality protection
    •100% on-time shipment protection
    •100% payment protection for your covered amount



    Application:

    1. The antenna radiates and receives radio waves. However, it is not radio waves that the transmitter sends to the antenna through the feeder. The receiving antenna can not send radio waves directly through the feeder to the receiver, which must go through the energy conversion process. Next, we take the radio communication equipment as an example to analyze the signal transmission process, and then explain the energy conversion function of the antenna.

    2. At the transmitter end, the modulated high frequency oscillating current (energy) generated by the transmitter is fed into the transmitting antenna by the feeding device (the feeding device can transmit current wave or electromagnetic wave directly depending on the frequency and form). The transmitting antenna converts the high frequency current or guided wave (energy) into radio wave-free electromagnetic wave (energy) to the circumference. Circumferential radiation (see Figure 1); at the receiving end, radio waves (energy) are converted into high-frequency current or guided waves (energy) through the receiving antenna and transmitted to the receiver via the feeding device. From the above process, it can be seen that the antenna is not only a device for radiating and receiving radio waves, but also an energy converter and an interface device between circuit and space.
    FAQ:
    1. When can I ?
    We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
    2. How can I get a sample to check your quality?
    After price confirmation, you can require for samples to check our quality.

    3. How long can I expect to get the sample?
    After you pay for the sample charge and we confirm the drawing with each other, the samples will be ready for 3-5 days. The samples will be sent to you via express and arrive in 3-5 days. You can use your own express account or prepay us if you do not have an account.
    4. Can you do the design for us?
    Yes. We have a professional engineer having rich experience in wire harness & cable assembly design. Just let us know your ideas and we will help to carry out your ideas into perfect products. It does not matter if you do not have someone to complete files. Tell us your detalied SPEC. of products, and we will send you finished drawing for confirmation.
    5. What about the lead time for mass production?
    Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 10 to15 days. Generally speaking, all of the goods can be reach your address within 4 weeks.
    6. What is your terms of delivery?
    We are accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or most cost-effective for you.
