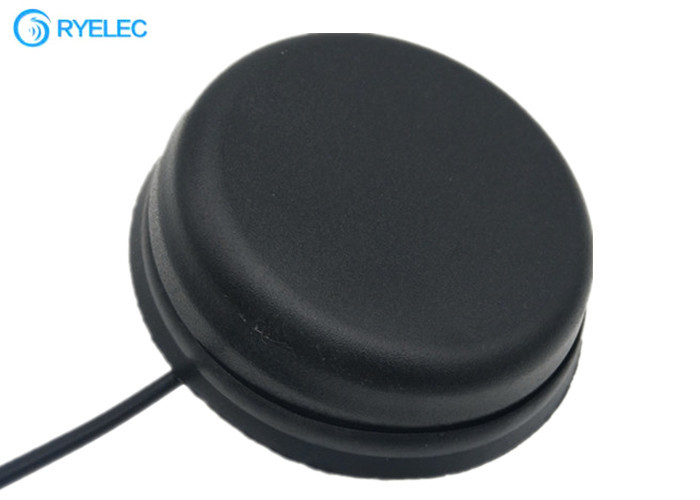

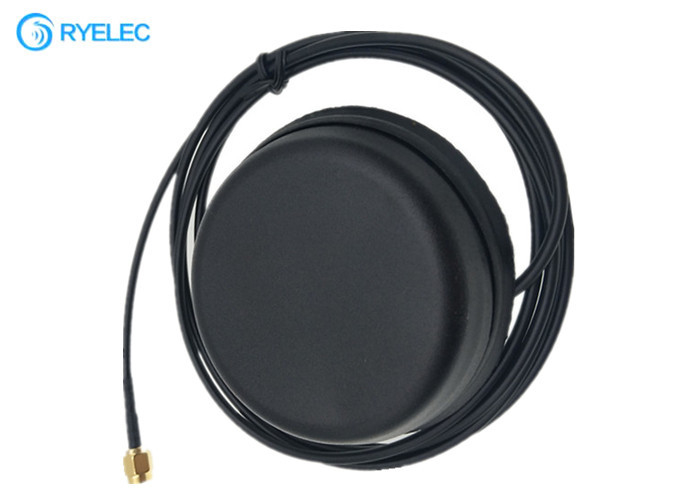

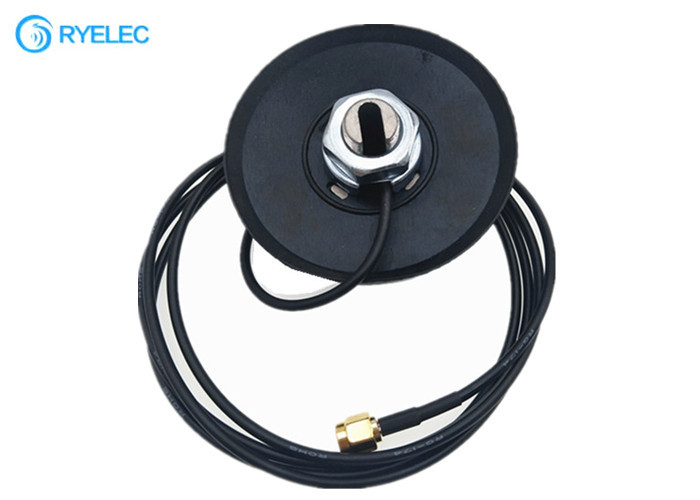

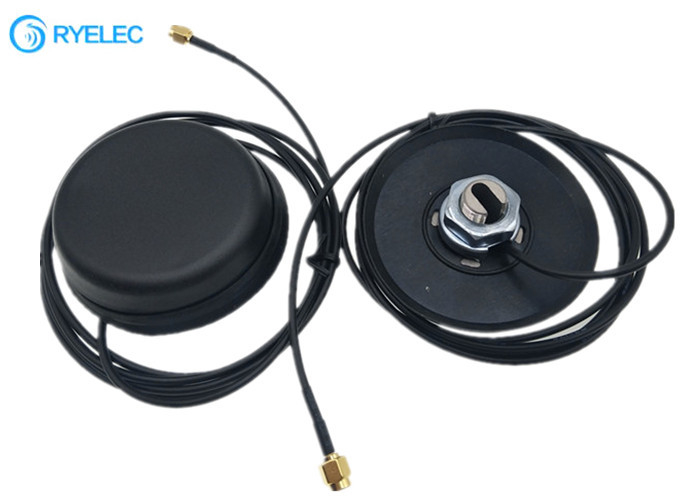

Vehicle Car 4G LTE Thru Hole Screw Mount Omni Directional Puck Antenna With Rubber Pad

Vehicle Car 4G LTE Thru Hole Screw Mount Omni Directional Puck Antenna With Rubber Pad

    • Vehicle Car 4G LTE Thru Hole Screw Mount Omni Directional Puck Antenna With Rubber Pad
    • Vehicle Car 4G LTE Thru Hole Screw Mount Omni Directional Puck Antenna With Rubber Pad
    • Vehicle Car 4G LTE Thru Hole Screw Mount Omni Directional Puck Antenna With Rubber Pad
    • Vehicle Car 4G LTE Thru Hole Screw Mount Omni Directional Puck Antenna With Rubber Pad
  • Vehicle Car 4G LTE Thru Hole Screw Mount Omni Directional Puck Antenna With Rubber Pad

    Product Details:

    Place of Origin: China
    Brand Name: RY
    Certification: CE,ROHS
    Model Number: RY-4-1617

    Payment & Shipping Terms:

    Minimum Order Quantity: 20
    Price: USD0.88~6.88
    Delivery Time: Shipped in 3 days after payment
    Payment Terms: L/C, T/T,Paypal, Western Union, MoneyGram
    Supply Ability: 10000pcs
    Contact Now
    Detailed Product Description
    Color: Black Mounting Type: Embedded,Screw,adhesive,magnetic
    Application: Indoor/Outdoor Cable Type: RG174
    Connector: SMA Type: Whip,puck,panel

    Vehicle Car 4G LTE Thru Hole Screw Mount Omni-Directional Puck Antenna With Rubber Pad ​





    Key Specification:



    Electrical Characteristics



    Frequency Range (MHz)



    800-2700

    Gain (dBi)



    3

    Horizontal Beamwidth (°)



    360

    VSWR



    1.5

    Input Impedance (Ω)



    50

    Maximum Power (W)



    50

    Polarization



    Vertical

    Lightning Protection



    DC grounding

    Mechanical Characteristics



    Connector type



    SMA-J

    Cable Type



    RG174

    Cable length (Meter)



    1.5(customizable)

    Material



    ABS

    Mount way



    Screw

    Environmental Characteristics



    Noise Factor (dBi)



    ≤1.5
    Operating Temperature (℃)

    -30-+60°C



    Relative Humidity

    Up to 95%



    ROHS Complaint

    yes





    Product Details:

    Vehicle Car 4G LTE Thru Hole Screw Mount Omni Directional Puck Antenna With Rubber Pad

    Vehicle Car 4G LTE Thru Hole Screw Mount Omni Directional Puck Antenna With Rubber Pad

    Our Company:


    1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.

    2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.

    Our advantages:


    1. Quality control:most of products have UL CE ROHS, certificate. ISO9001:2008.

    2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.

    3. Fast Delivery Time :2~15 days, On-Time Delivery.

    4. Good After-Sales Service: we could offer technical support or return service in short time.

    5. We are available with Trade Assurance, you'll enjoy:
    •100% product quality protection
    •100% on-time shipment protection



    Application:



    1. The antenna radiates and receives radio waves. However, it is not radio waves that the transmitter sends to the antenna through the feeder. The receiving antenna can not send radio waves directly through the feeder to the receiver, which must go through the energy conversion process. Next, we take the radio communication equipment as an example to analyze the signal transmission process, and then explain the energy conversion function of the antenna.



    2. At the transmitter end, the modulated high frequency oscillating current (energy) generated by the transmitter is fed into the transmitting antenna by the feeding device (the feeding device can transmit current wave or electromagnetic wave directly depending on the frequency and form). The transmitting antenna converts the high frequency current or guided wave (energy) into radio wave-free electromagnetic wave (energy) to the circumference. Circumferential radiation (see Figure 1); at the receiving end, radio waves (energy) are converted into high-frequency current or guided waves (energy) through the receiving antenna and transmitted to the receiver via the feeding device. From the above process, it can be seen that the antenna is not only a device for radiating and receiving radio waves, but also an energy converter and an interface device between circuit and space.



    FAQ:
    1. When can I ?
    We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.


    2. Are you manufacturer or a trading company ?

    We have been professtional antenna, wire harness manufactuer for more than 10years



    3. How can I get a sample to check your quality?
    After price confirmation, you can require for samples to check our quality.


    4.  how much the shipping cost will be for sample ?
    The depend on the weight and packing size you are

    5. What about the lead time for mass production?
    Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 10 to15 days. Generally speaking, all of the goods can be reach your address within 4 weeks.

    6. What is your terms of delivery?
    We are accept EXW, FOB, CIF, etc.
