Brand Name:
RY
Model Number:
RY-4G-30-73
Certification:
CE,ROHS
Place of Origin:
China
Contact Us
Video

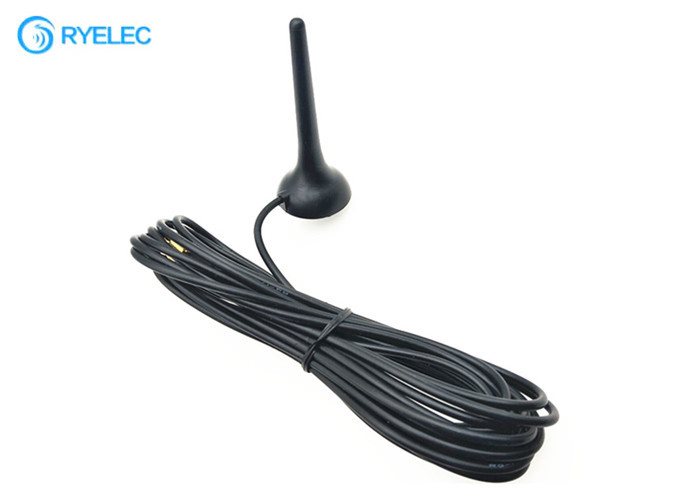

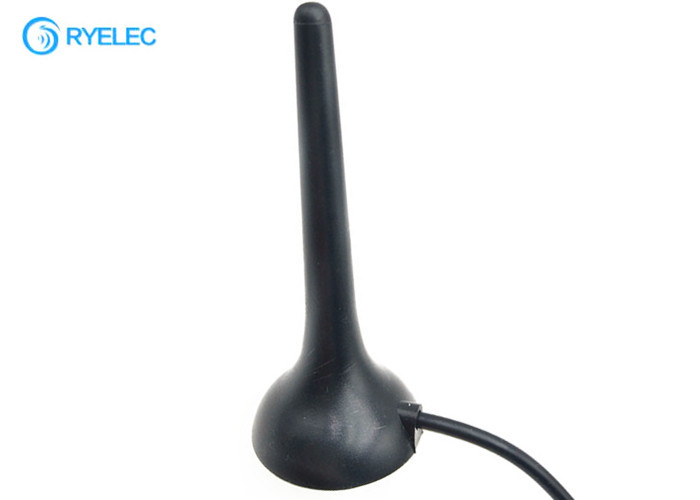

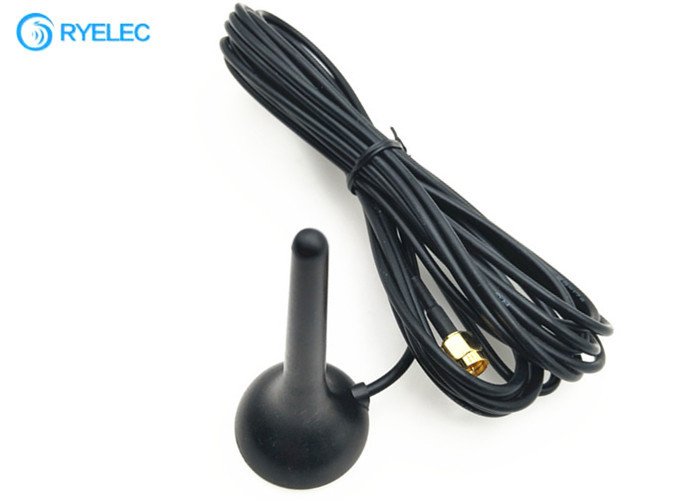

Car Roof Mount Or Magnetic Base Mounting 4G Lte Micro Antenna With Sma Male Connector
Electrical Characteristics:
Electrical Specification | |
Frequency Range | LTE 800-2600MHZ |
Gain | 2dBi |
VSWR | ≤2.0 |
Polarization Type | Vertical |
Impendence | 50Ω |
Max Input Power | 50 w |
Operating Temperature | -40℃ to+65℃ |
Storeage Temperature | -40℃ to+80℃ |
Mechanical Specifications | |
Antenna type | mini whip antenna |
Antenna height (mm) | 72 |

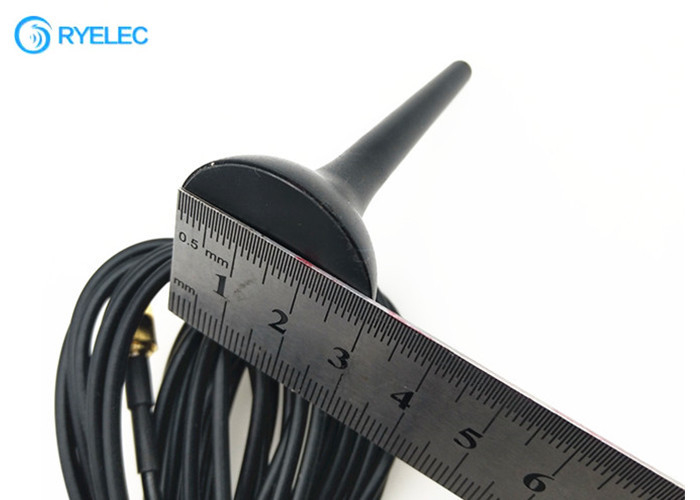

Base diameter | 30mm |
| Cable type | RG178 cable, optional |
Cable Length | 1.5m, optional |
Connector Type | SMA Male |
Radiation Pattern | omni directional |
Product Details:
Our Company:
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.
2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.
Packaging & Shipping
1. We will ship the items within 3-5 working days after the payment confirmed.
2.In general, We delivery our products via international Express, such as FEDEX, DHL,UPS,SF,etc. It will take around 3-5 days to reach your hands. Our related sales person will be responsible to send the AWB for the delivered goods in the next workday. If you have any special needs please notify me.
3.It is acceptable to deliver goods to your forwarder or dock warehouse near us if required.
4.Please confirm receipt of products if the items you received , and if the goods was damaged please contact us immediately, send the photo to us that we can check and give you best solution.
FAQ:
1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
2. How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality.
3. How long can I expect to get the sample?
After you pay for the sample charge and we confirm the drawing with each other, the samples will be ready for 3-5 days. The samples will be sent to you via express and arrive in 3-5 days. You can use your own express account or prepay us if you do not have an account.
4. Can you do the design for us?
Yes. We have a professional engineer having rich experience in wire harness & cable assembly design. Just let us know your ideas and we will help to carry out your ideas into perfect products. It does not matter if you do not have someone to complete files. Tell us your detalied SPEC. of products, and we will send you finished drawing for confirmation.
5. What is your terms of delivery?
We are accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or most cost-effective for you.
