Brand Name:
RY
Model Number:
RY-A-87
Certification:
CE,ROHS
Place of Origin:
China
Contact Us
Video

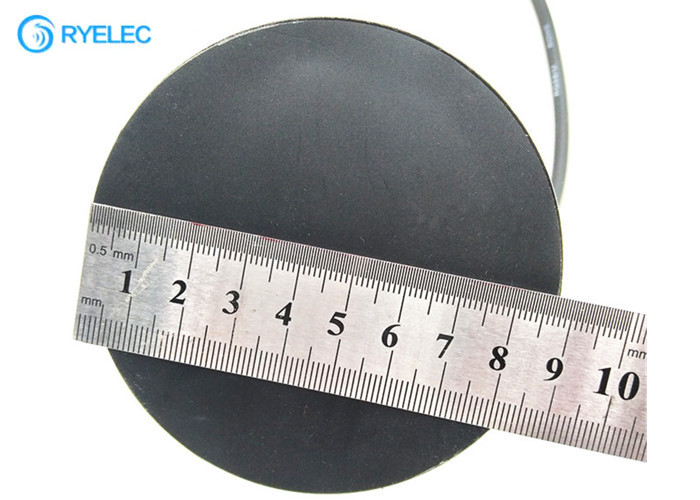

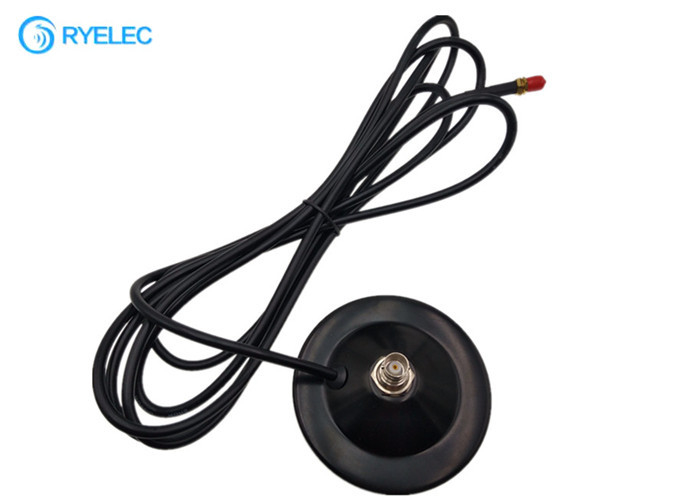

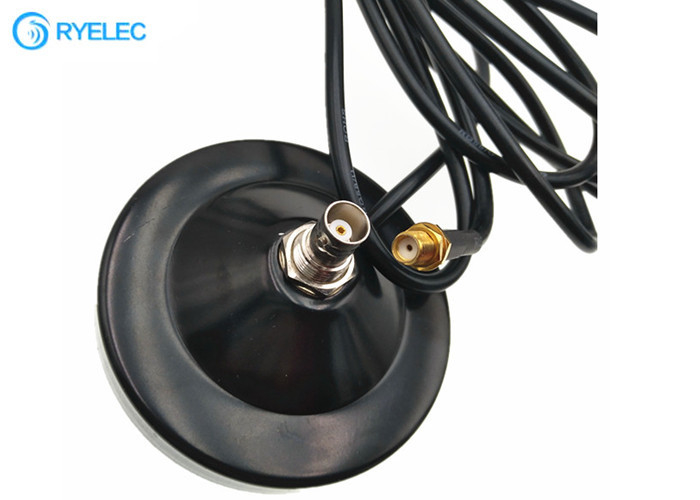

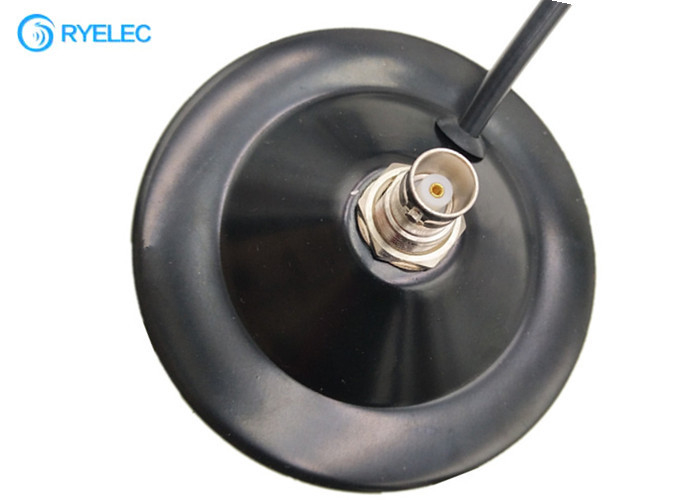

Custom Router Network Card Magnetic Suction Base For BNC Female Antenna With SMA Female
Electrical Characteristic:
| Connector | BNC |
| Plating | Plate with nickel |
| Radome material | ABS |
| Temperature range | -40~+85°C |
| Vibration | 100m/s2 (10~500Hz) |
| Impedance | 50 OHM |
| Frequency Range | GSM/3f/4g/wifi |
| Peak gain | 2dbi |
| Radiation pattern | Omin-directional in azimuth |
| Contact resistance | ≤0.4 OHM @ inner contact ≤1.5 OHM @ outer contact |
| Max power | 50W |
| Lightning protection | DC fround |
| VSWR | ≤ 1.2 |
| Durability (mating) | ≥500 (cycles) |
Product Details:
Our Company:
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.
2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.
What We Could Do For You Are :
1) factory sell directly
2) long-term,strong and steady supplying ability
3) delivery time: 1-2 working days
4) do as your requirements on package,brand or other designs
5) strong sales promotion policy
6) ex-factory price and competitive price
7) we can provide you a good survice
8) replying you asap.(will reply you 10-20 mins on the basis of getting your require.
•100% payment protection for your covered amount
Application:
1. The antenna radiates and receives radio waves. However, it is not radio waves that the transmitter sends to the antenna through the feeder. The receiving antenna can not send radio waves directly through the feeder to the receiver, which must go through the energy conversion process. Next, we take the radio communication equipment as an example to analyze the signal transmission process, and then explain the energy conversion function of the antenna.
2. At the transmitter end, the modulated high frequency oscillating current (energy) generated by the transmitter is fed into the transmitting antenna by the feeding device (the feeding device can transmit current wave or electromagnetic wave directly depending on the frequency and form). The transmitting antenna converts the high frequency current or guided wave (energy) into radio wave-free electromagnetic wave (energy) to the circumference. Circumferential radiation (see Figure 1); at the receiving end, radio waves (energy) are converted into high-frequency current or guided waves (energy) through the receiving antenna and transmitted to the receiver via the feeding device. From the above process, it can be seen that the antenna is not only a device for radiating and receiving radio waves, but also an energy converter and an interface device between circuit and space.
FAQ:
1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
