G652D Air Blowing 24 Core GCYFTY Fiber Optic Cable for telecommunication

G652D Air Blowing 24 Core GCYFTY Fiber Optic Cable for telecommunication

GCYFTY Fiber Optic Cable

GCYFTY 24 Core Fiber Cable

G652D Air Blowing Fiber Cable

Place of Origin:

China

Brand Name:

RY Or OEM

Certification:

CE,ROHS

Model Number:

GCYFTY

Contact Us

Request A Quote
Product Details
Type:
Fiber Optic Cable
Application:
Outdoor Duct/outdoor Cable/aerial/lashed
Fiber Type:
G652D, G657A1 Or As Your Inquiry
Cable Structure:
Multi-Loose Tube Non Armor
Color:
Black
Package:
1km/roll/2km/roll
Fiber Count:
2-288 Cores Available
Name:
GCYFTY Cable
Payment & Shipping Terms
Minimum Order Quantity
1000M
Price
USD0.23~0.29
Packaging Details
3000M/A Roll
Delivery Time
Shipped in 7 days after payment
Payment Terms
L/C, T/T,Paypal, Western Union, MoneyGram, D/A, D/P
Supply Ability
1000000M
Product Description



Fiber Optic Cable Manufacturers Air Blowing Micro 24 Core Optical Fiber Cable GCYFTY



A fiber-optic cable, also known as an optical-fiber cable, is an assembly similar to an electrical cable, but containing one or more optical fibers that are used to carry light. The optical fiber elements are typically individually coated with plastic layers and contained in a protective tube suitable for the environment where the cable will be deployed. Different types of cable[1] are used for different applications, for example, long distance telecommunication, or providing a high-speed data connection between different parts of a building.



Electrical Characteristics:



Optocal Characteristics


G.652.D
G.655.D
50/125µm
62.5/125µm
Attenuation
@850nm


≤3.0dB/km
≤3.0dB/km
@1300nm


≤1.0dB/km
≤1.0dB/km
@1310nm
≤0.36dB/km
≤0.40 dB/km


@1550nm
≤0.22dB/km
≤0.32 dB/km


Bandwidth
@850nm


≥500MHZ●KM
≥200MHZ●KM
@1300nm


≥1000MHZ●KM
≥600MHZ●KM
Numerical Aperture


0.200±0.015NA
0.275±0.015NA
Cable Cut-off Wavelength λcc
≤1260nm
≤1480nm


Technical Parameters


Cable Diameter mm


Cable Weight kg/km
Rec. daily max. working tension KN
Max. allowable working tension KN
Break strength KN
Strentth Member CSA mm2
Modulus of Elasticity kN/mm2
Heat
Expansion coefficient
x10-6/K
12.5
125
1.5
4
10
4.6
7.6
1.8
13.0
132
2.25
6
15
7.6
8.3
1.5
13.3
137
3.0
8
20
10.35
9.45
1.3
13.6
145
3.6
10
24
13.8
10.8
1.2
13.8
157
4.5
12
30
14.3
11.8
1.0
14.5
164
5.4
15
36
18.4
13.6
0.9
14.9
171
6.75
18
45
22.0
16.4
0.6
15.1
179
7.95
22
53
26.4
18.0
0.3
15.5
190
9.0
26
60
32.2
19.1
0.1
15.6
194
10.5
28
70
33.0
19.6
0.1
16.3
211
12.75
34
85
40.0
20.1
0.1
16.8
226
15.45
41
103
48.0
24.0
-0.4
17.2
236
16.2
45
108
51.0
25.1
-0.5
17.9
249
18.0
50
120
58.8
26.1
-0.8
Storage/Operating Temperature : -40℃ to + 70℃



Since the application of communication optical cable in 1970s, it has become the backbone of long-distance trunk line, telephone relay in city, underwater and submarine communication, as well as LAN, private network and other cable transmission. It has started to develop to user access network, from fiber to roadside (FTTC), optical fiber to building (FTTB) to fiber to home (FTTH). For various applications and environmental conditions, communication optical cables are laid in overhead, direct buried, pipeline, underwater, indoor and other ways.

Introduction to the foundation of overhead cable, direct buried optical cable, pipeline optical cable and underwater optical cable

Overhead optical cable

Overhead optical cable is a kind of optical cable which is used on the pole. This laying method can use the original overhead open line pole road, save construction cost and shorten the construction period. The overhead cable is installed on the pole, which requires it can adapt to various natural environment. The overhead optical cable is easy to be threatened by natural disasters such as typhoon, ice, flood, and other natural disasters, and also affected by external forces and the weakening of its mechanical strength. Therefore, the failure rate of the overhead optical cable is higher than that of the direct buried and pipeline optical fiber optic cable. It is generally used for long-distance secondary or lower lines, and is suitable for special network optical cable lines or some local special sections.

There are two ways to lay overhead optical cable:

1. wire type: first fasten the cable to the pole with the hanging wire, and then hang the optical cable on the cable with hook. The load of the optical cable is carried by the cable.

2. self supporting type: a self supporting type optical cable is used. The optical cable is of the "8" type, and the upper part is self-supporting line, and the load of the optical cable is carried by the self bearing line.

The laying requirements are as follows:

1. When laying optical cables in flat environment by aerial way, hook hanging shall be used; cable shall be laid in mountainous or steep slope, and cable shall be laid by binding. The cable joint shall be at the position of straight pole easy to maintain, and the reserved optical cable shall be fixed on the pole with reserved support.

2. The U-shaped expansion bend is required for the optical cable of overhead pole road every 3-5 stop bar, and 15m is reserved every 1km.

3. The cable leading up the overhead (wall) shall be protected by galvanized steel pipe, and the pipe mouth shall be blocked with fire-proof mud.

4. The warning signs of optical cables shall be hung every 4 stop bars and special sections such as crossing roads, rivers and bridges.

5. The protection of three-way protective pipe shall be added at the intersection of the air suspension line and power line, and the elongation of each end shall not be less than 1m.

6. The stay wire of electric pole close to the highway shall be covered with light-emitting rod with a length of 2m.

7. In order to prevent the induced current of the suspension wire from hurting people, each pole cable shall be electrically connected with the suspension line. The cable position shall be equipped with the cable type ground wire. The cable shall be connected directly with the liner ring and directly grounded at the terminal.

8. The overhead optical cable is usually 3M away from the ground. When entering the building, it is necessary to penetrate the U-shaped steel protective sleeve on the outer wall of the building, and then extend downward or upward. The aperture of the optical cable entrance is generally 5cm.



Our Company:
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies
optical fibers cable and antennas router in large or small volumes depending on your needs.

2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.



3. Quality is important for us and for the customer, the client’s demand is more supreme. We create an easier, less costly and extremely satisfactory way of business. Striving to achieve improving results through our continuous innovating and technical engineer’s effort, we create values to turn the antenna / Cable / Harness to your exact demand.


4. We guarantee every antenna / Cable / Harness we offered must be tested by network analyzer / Precision Low Voltage Wire Tester to ensure the perfect quality before delivery. Cooperated with many overseas clients from over twenty countries, we will be your ideal OEM/ODM partner.



5. Being service of many clients from all over the world help us keeping improve our standard to meet different requirement.



Product Details:

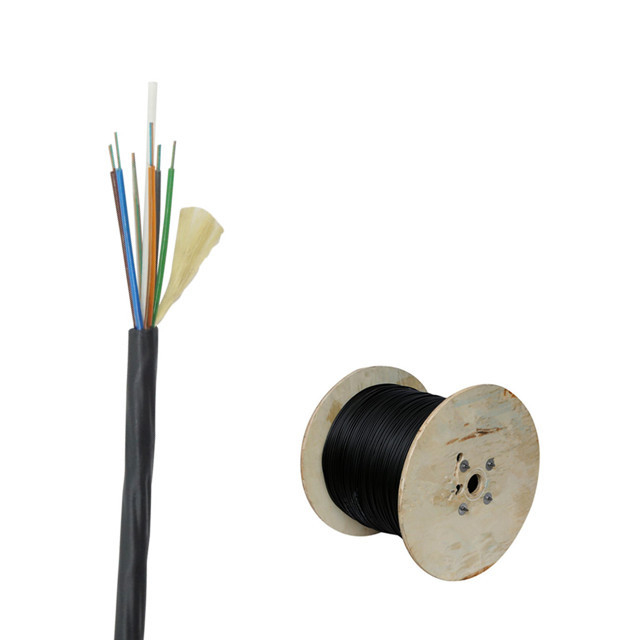

G652D Air Blowing 24 Core GCYFTY Fiber Optic Cable for telecommunication 0

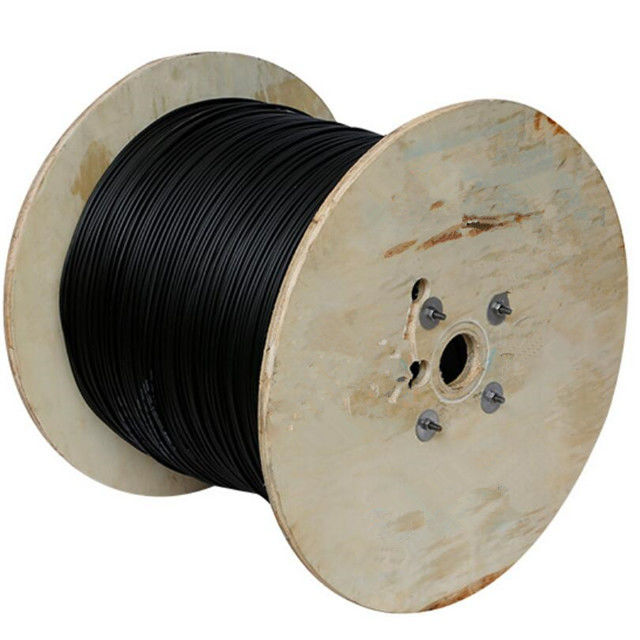

G652D Air Blowing 24 Core GCYFTY Fiber Optic Cable for telecommunication 1

G652D Air Blowing 24 Core GCYFTY Fiber Optic Cable for telecommunication 2

FAQ:

1. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.



2. What is your warranty period?
25 years for fiber optic cable



3. Which kind of certification you have ?
ISO9001, SGS, UL, RoHs.



4. What is your delivery time?
Usually within 7-15 working days


5. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.



6. What is your payment way?
T/T, L/C, Western Union and Paypal.



7. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
