Waterproof Transmission Dual Band 4G LTE Antenna Screw Mounting

Waterproof Transmission Dual Band 4G LTE Antenna Screw Mounting

Dual Band 4G LTE Antenna

Waterproof Transmission 4G LTE Antenna

4G 5G Dual Band Puck Antenna

Place of Origin:

China

Brand Name:

RY

Certification:

CE,ROHS,ISO

Model Number:

RY-40M10-45

Contact Us

Request A Quote
Product Details
Frequency:
4 GHZ / 5 GHZ
Gain:
5dbi
Size:
φ40mm
VSWR:
<2
Impedance:
50Ω
Mounting Type:
Screw / Adhesive
Connector:
SMA / TNC / BNC...
Type:
Whip
Payment & Shipping Terms
Minimum Order Quantity
50
Price
USD1.5~3.5
Packaging Details
sample size:18*12*9cm,40*40*20cm..etc
Delivery Time
Shipped in 15 days after payment
Payment Terms
L/C, T/T,Paypal, Western Union, MoneyGram
Supply Ability
10000pcs
Product Description



Waterproof Transmission 4G 5G Dual Band Puck Antenna With M10 Screw For Adhesive Pole Mount​



Antenna Classification:
1. It can be divided into transmitting antenna and receiving antenna according to the nature of work.
2. It can be divided into communication antenna, broadcast antenna, TV antenna, radar antenna, etc.
3. According to the directivity, it can be divided into omnidirectional antenna and directional antenna.
4. According to the working wavelength, it can be divided into ultra long wave antenna, long wave antenna, medium wave antenna, short wave antenna, ultra short wave antenna, microwave antenna, etc.
5. According to the structure and working principle, it can be divided into wire antenna and surface antenna. The characteristic parameters of antenna are pattern, directivity coefficient, gain, input impedance, radiation efficiency, polarization and bandwidth
6. According to the dimension, it can be divided into two types: one-dimensional antenna and two-dimensional antenna
One dimensional antenna: composed of many wires, these wires are either like the straight lines used in mobile phones, or some smart shapes, like the old rabbit ears used in TV before the cable appeared. Monopole and two-stage antennas are two basic one-dimensional antennas.
2-D Antennas: various, including sheet (a piece of square metal), array (a bundle of well-organized 2-D patterns), horn and dish.
7. Antennas can be divided into three categories according to different application occasions: Handheld antenna, vehicle antenna and base antenna.



Dual Band 4G 5G Antenna Electrical Characteristics:



Frequency

4ghz 5ghz
VSWR

2
Gain

5dbi
Max Input power

50w
Input Impedance

50Ω
Polarization

Vertical
Antenna Size

φ40mm
Cable Length

1,2m etc.

Cable Type

RG174
Connector

SMA/SMB/SMC/BNC/FAKRA/FME etc.
Mounting

Screw(M10)
Housing

Black
Direction

Omni
Operating Temperature

-45℃ to+75℃



When high frequency current is applied to the conductor, electric field and magnetic field will be generated in the surrounding space. According to the spatial distribution characteristics of electromagnetic field, it can be divided into near region, middle region and far region. Let R be the distance between a point in space and the conductor, and the region of time is called the near region. The electromagnetic field in this region is closely related to the current and voltage in the conductor. In this region, the electromagnetic field can leave the conductor and propagate into space, and its change will lag behind the current and voltage on the conductor for a period of time. At this time, the electromagnetic wave propagated is no longer directly related to the current and voltage on the conductor, and the electromagnetic field in this region is called radiation field.

It must be pointed out that when the length L of the wire is much less than the wavelength λ, the radiation is very weak; when the length L of the wire is increased to be comparable with the wavelength, the current on the wire will increase greatly, so a strong radiation can be formed.



Dual Band 4G 5G Antenna Product Details:

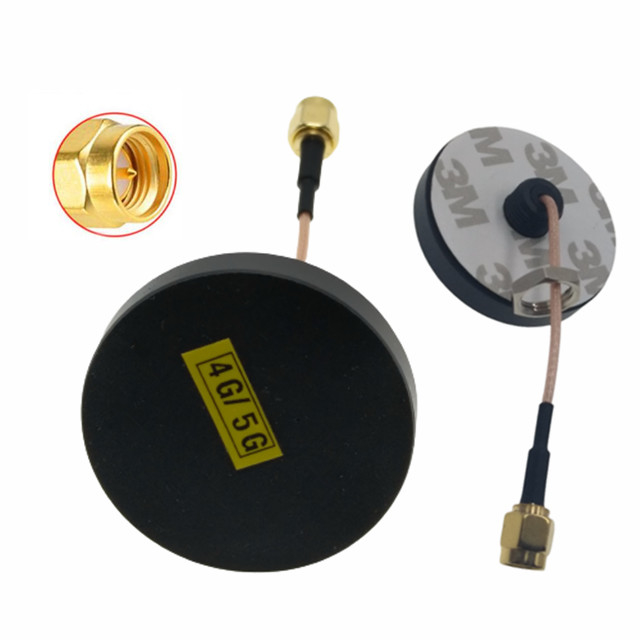

Waterproof Transmission Dual Band 4G LTE Antenna Screw Mounting 0

Dual Band 4G 5G Antenna Our Company:
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.

2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.

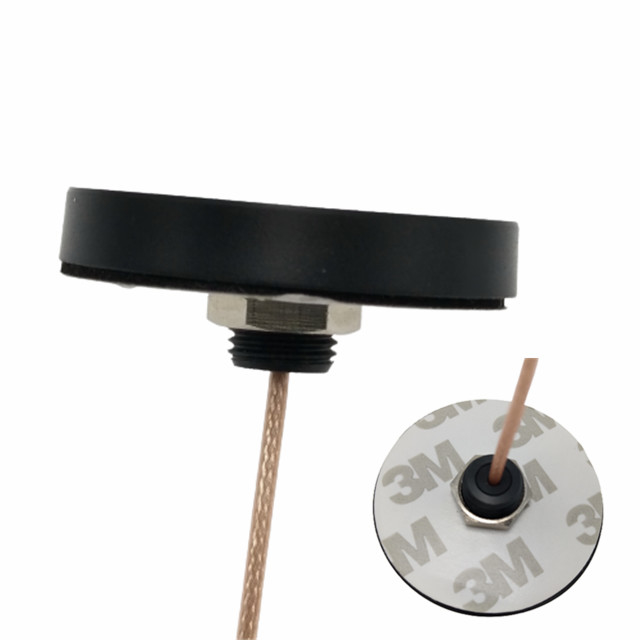

Waterproof Transmission Dual Band 4G LTE Antenna Screw Mounting 1

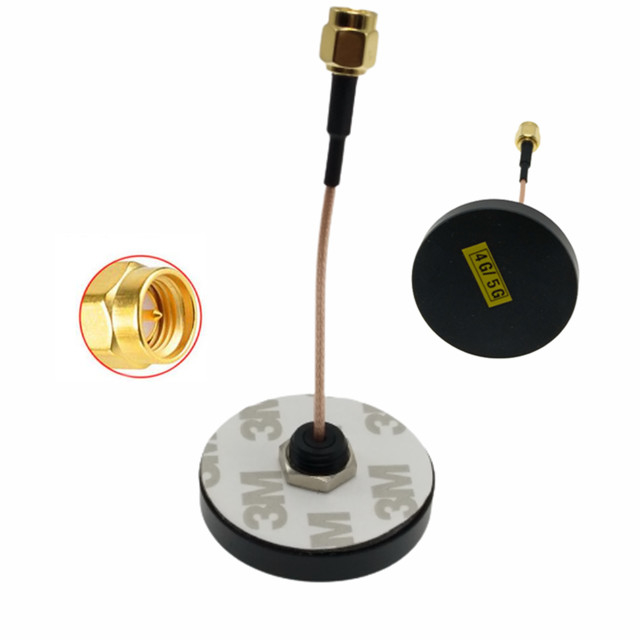

Waterproof Transmission Dual Band 4G LTE Antenna Screw Mounting 2



Our Advantages:
1. Nearly 10 years of rich marketing experience and has sufficient supplies and materials.

2. Financially sounded and has the continuous line service from R&D to designing, manufacturing and marketing.

3. Our products have a wide field of applications including industry, communication, information, automobiles, computer peripherals.

4. Competitive price,We devote ourselves in providing products with market differentiation and high performance.

5. We reduce the impact and damages caused to the environment, abide international environmental regulations and seek to be green and eco-friendly.

FAQ:
1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.

2. Do you have stock?
 We don’t have stock; we’ll start production after receiving PO.

3.What's information do you need for quoting?
For Cable harness, please advise cable specs, part number, or send drawings.
For Connectors, please kindly advise series pins, male or female, molded, field assembly panel mount type and cable length.

4. What's your payment terms?
100 % T/T before delivery

5. What is your terms of delivery?
We are accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or most cost-effective for you.

Packaging & Shipping:

1. Usually we ship your order by sea or by air.
2. We do our best to ship your order within 1 week after receiving your payment
3. We'll tell you the tracking number once your order has been sent.

4. We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal.
