7dbi 4g LTE Helica Spring GPS GSM Antenna Magnetic Base Crc9 For Signal Booster

7dbi 4g LTE Helica Spring GPS GSM Antenna Magnetic Base Crc9 For Signal Booster

Helical gps gsm antenna

7dbi gps gsm antenna

4g high gain gsm antenna

Brand Name:

RY

Model Number:

RY-4G-Sucker-30

Certification:

CE,ROHS,ISO

Place of Origin:

China

Contact Us

Request A Quote
Product Details
Frequency:
4g Lte Gprs Gsm 2.4g
Gain:
7dbi
Diameter:
30mm
VSWR:
<2
Impedance:
50Ω
Mounting Type:
Magnetic
Connector:
SMA / TNC / BNC...
Type:
Whip
Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
USD1.5~2.0
Payment Terms
L/C, T/T,Paypal, Western Union, MoneyGram
Supply Ability
10000pcs
Delivery Time
Shipped in 15 days after payment
Packaging Details
sample size:18*12*9cm,40*40*20cm..etc
Product Description



7dbi 4g Lte Gprs Gsm 2.4g Helical Spring Antenna Magnetic Base Crc9 For Signal Booster



Compared with the built-in antenna, the sucker antenna has better standing wave ratio, higher efficiency and no need of customization; Compared with the rubber rod antenna, it has higher gain and longer transmission distance in the same frequency band and structure size. Different installation positions can be selected according to the actual needs. In addition to the above advantages, the sucker antenna also has a wide range of uses, in addition to our daily visible vending machines, express cabinets, car radio, but also suitable for wireless modules and wireless gateways with medium gain requirements.



Electrical Characteristics:



Key Specification
Frequency(MHz) 800-2700
VSWR 1:2.0
Gain(dBi) 7
Max Input power(W) 60
Input Impedance(Ω) 50
Polarization Vertical

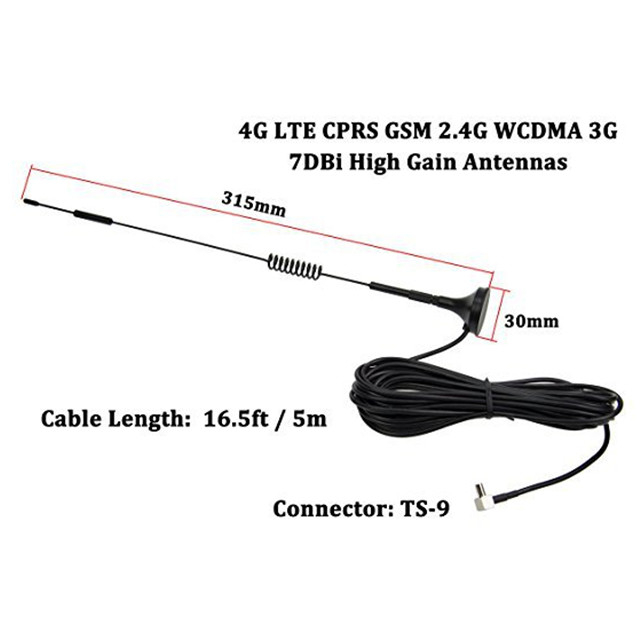

Antenna Size(mm) Φ30(Base)×315(Height)
Cable Length(m) 1,2 3etc.
Cable Type RG174
Connector SMA/SMB/SMC/BNC/FAKRA/FME etc.
Mounting Magnetic
Housing Black
Direction Omni
Operating Temperature -45℃ to+75℃



(Structural Drawing Of Sucker Antenna)

1. The antenna radiator is made of stainless steel, pure copper, memory alloy and other materials, and its shape is usually whip shaped or rod-shaped. A sucker antenna radiator is actually a monopole (whiplash) antenna, whose arm is perpendicular to an ideal conductor plane (ground). According to the principle of antenna, the resonant frequency of wire antenna is integral multiple of 1 / 2 wavelength. According to the principle of mirror image, the ideal minimum electric size of sucker antenna is 1 / 4 wavelength on the ideal infinite plane. If we want to improve the gain, we can increase the length of antenna radiator (integral multiple of 1 / 4 wavelength) by adding inductance in the middle.

2. The function of high-intensity magnetic sucker is to fix the whole antenna and ensure that the sucker antenna is in conductive contact with the absorbed metal.

3. Feeders generally have RG series (RG58, RG174), 3D wire, etc.

4. The common types of antenna interfaces are: n-head, SMA, BNC, TNC, 1-pex and so on. Among them, the commonly used connectors of sucker antenna are n-head, SMA, BNC, TNC and so on, which are male and female. When choosing the antenna, you must buy the connector matching with the equipment.



Antenna Product Details:

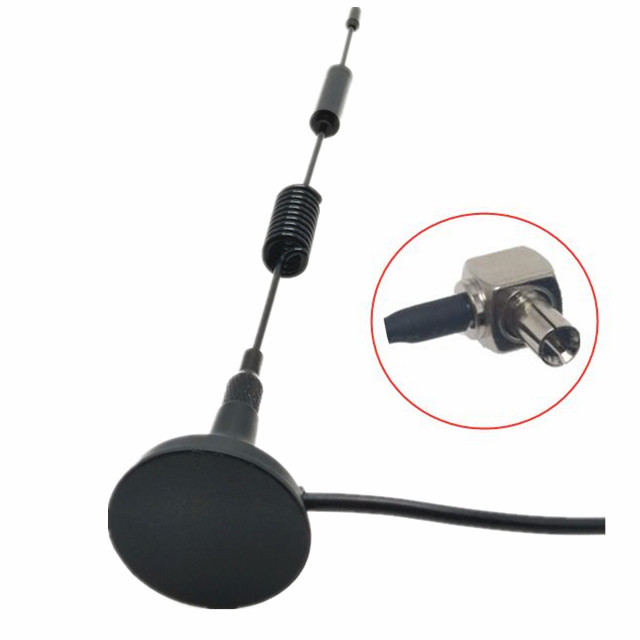

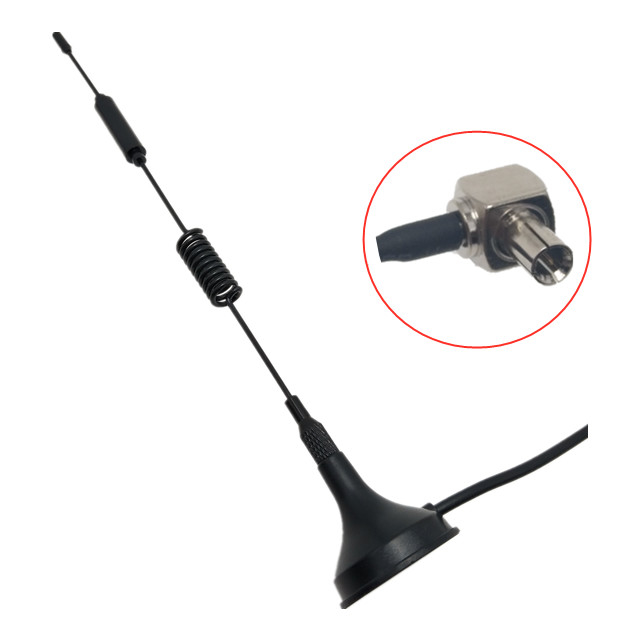

7dbi 4g LTE Helica  Spring GPS GSM Antenna Magnetic Base Crc9 For Signal Booster 0

Antenna Our Company:
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.

2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.

7dbi 4g LTE Helica  Spring GPS GSM Antenna Magnetic Base Crc9 For Signal Booster 1

Our Advantages:
1. Nearly 10 years of rich marketing experience and has sufficient supplies and materials.

2. Financially sounded and has the continuous line service from R&D to designing, manufacturing and marketing.

3. Our products have a wide field of applications including industry, communication, information, automobiles, computer peripherals.

4. Competitive price,We devote ourselves in providing products with market differentiation and high performance.

5. We reduce the impact and damages caused to the environment, abide international environmental regulations and seek to be green and eco-friendly.

FAQ:
1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.

2. Do you have stock?
 We don’t have stock; we’ll start production after receiving PO.

3.What's information do you need for quoting?
For Cable harness, please advise cable specs, part number, or send drawings.
For Connectors, please kindly advise series pins, male or female, molded, field assembly panel mount type and cable length.

4. What's your payment terms?
100 % T/T before delivery

5. What is your terms of delivery?
We are accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or most cost-effective for you.

Packaging & Shipping:

1. Usually we ship your order by sea or by air.
2. We do our best to ship your order within 1 week after receiving your payment
3. We'll tell you the tracking number once your order has been sent.

4. We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal.
