18 Elements 4G Lte TV Stable Signal Directional Outdoor Beam Antenna

Product Details:
Place of Origin: China
Brand Name: RY
Certification: CE,ROHS
Model Number: RY-YG-18111
Payment & Shipping Terms:
Minimum Order Quantity: 20
Price: USD8-12
Packaging Details: 59*16*10cm...etc
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, T/T,Paypal, Western Union, MoneyGram
Supply Ability: 10000000pcs / Month
Contact Now

Detail Information

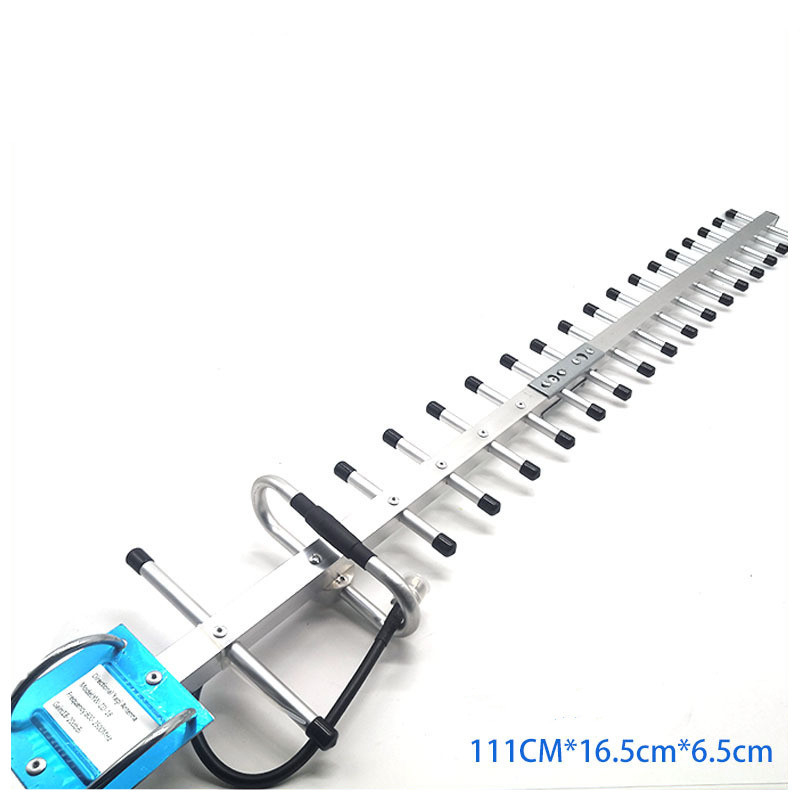

Frequency: 700-2700mhz Size: 111*16.5*6.5cm
Impedance: 50 Ohm Samples: Available
High Light:

Directional Outdoor Beam Antenna

,

18 Elements 4g LTE Antenna

,

4G Lte Beam Antenna

Product Description



18 Elements 4G Lte TV Stable Signal Receiving Amplifier Directional Outdoor Beam Antenna



Electrical Characteristics:

Electrical Specifications
Frequency range(MHz)
600-2700
Bandwidth(MHz)
28
Gain(dBi)
28
Half-power beam width(°)
H:70 V:55
VSWR
≤1.5
Input Impedance(Ω)
50
Polarization
Horizontal and Vertical
Maximum input power(W)
50
Lightning protection
DC Ground
Input connector type
RP-SMA-J-custom connector
Mechanical Specifications
Dimensions-mm (Length)
630
Antenna weight(kg)
0.3
Operating temperature(°c)
-40~+60
Rated Wind Velocity(m/s)
60
Waterproof Standard
IP54/ IP65/ IP67
Mounting way
Wall-mounted/ Pole-holding
Mounting hardware(mm)
40-50

Product Details:

☀ We focus on coaxial connectors / cable / antenna.

☀ Our custom RF cable connectors are built-in and shipped worldwide.

☀ RF cable connectors in 50 ohms can be the following types such as EIA, 7/16 DIN, BNC, FME, MCX, MMCX, N, QMA, SMA, SMB, SMC, SMP, SSMB, TNC, UHF, U.FL and 75 ohms cable assemblies can be made with the following 75 ohms connectors such as BNC, F, N, SMB, SMC, TNC and mini SMB .

☀ RF cable connectors can be connected on the coaxial cable includes: RG141/RG142/RG174/ RG178/RG179/RG180/ RG187/RG196/RG213/RG214/RG218/RG219/ RG223/RG303/RG316/RG316-DS/RG393/RG400/RG401/RG402/RG405/RG58U/1/2 / 7/8 / LMR195/ LMR240/LMR400,ect

☀ RF cable connectors can be produced to cable assemblies with many different cable types and custom lengths depending on your needs and applications.

☀ If you require a special RF cable assembly configuration not found here, you can create your own RF cable assembly configuration by calling our sales department.

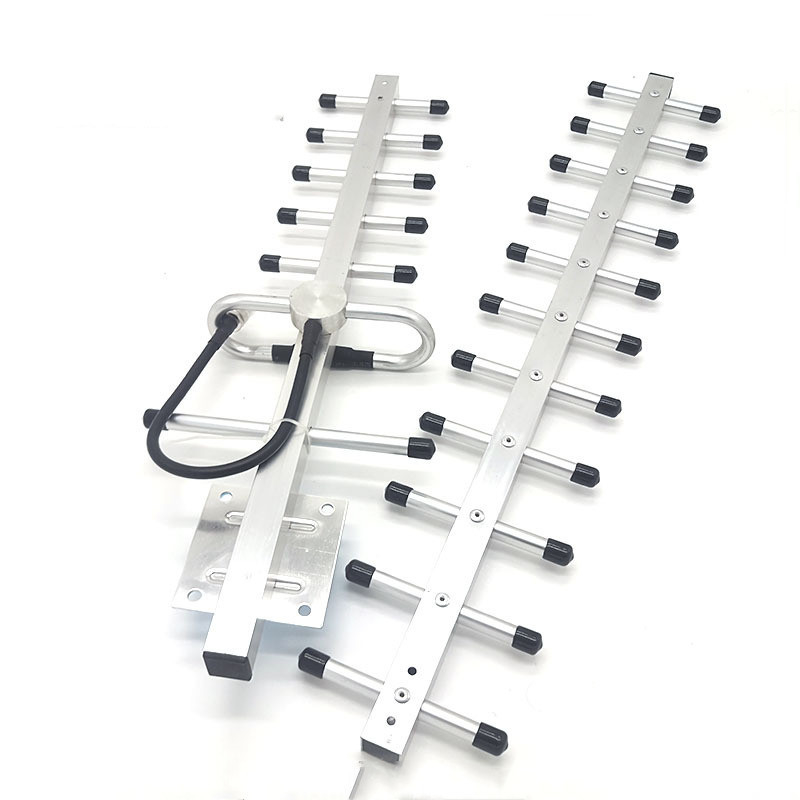

18 Elements 4G Lte TV Stable Signal Directional Outdoor Beam Antenna 0

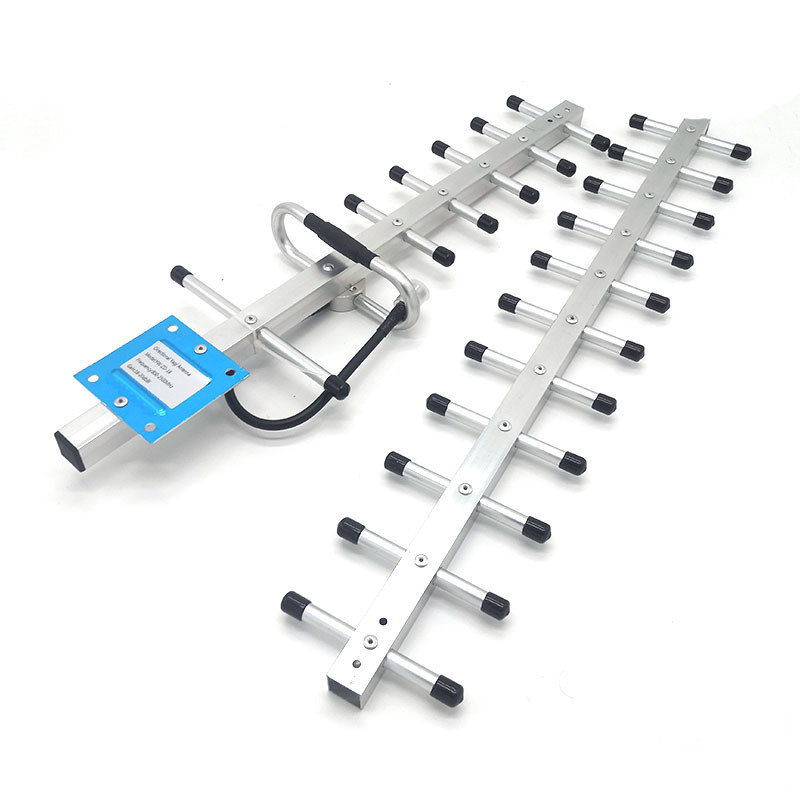

18 Elements 4G Lte TV Stable Signal Directional Outdoor Beam Antenna 1
