Outdoor Wide Band 4G LTE Antenna Directional 2700 MHz LPDA Patch Panel

Product Details:
Place of Origin: China
Brand Name: RY
Certification: CE,ROHS
Model Number: RY-220713
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: USD2.5-6.0
Packaging Details: 62×46×35cm / 20pcs in one carton
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, T/T,Paypal, Western Union, MoneyGram
Supply Ability: 10000000pcs / Month
Contact Now

Detail Information

Frequency: 700-2700mhz Size: 300*210×65mm
Impedance: 50 Ohm Samples: Available
High Light:

Outdoor Wide Band Directional Antenna


2700 MHz 4G LTE Antenna


4G LTE Patch Panel Antenna

Product Description


Outdoor Wide Band Directional Antenna 700-2700 MHz 4G LTE LPDA Patch Panel Antenna


Electrical Characteristics:

Frequency: 806-960 / 1710-2700MHz
Gain: 8.2dBi @ 806-960/9.5dBi @ 1710-2700
Standing wave: ≤1.4
Power: 100W
Impedance: 50Ω
Polarization: vertical
Horizontal beam width: 65°
Wertical beam width: 55°
Forward and reverse ratio: ≥18dB
Lightning protection:DC grounding
Weight: 0.87 kg
Color: White
Size: 300*210×65mm
Connector type: N female or customized
Terminal line: white 5D-FB

Product Details:

☀ We focus on coaxial connectors / cable / antenna.

☀ Our custom RF cable connectors are built-in and shipped worldwide.

☀ RF cable connectors in 50 ohms can be the following types such as EIA, 7/16 DIN, BNC, FME, MCX, MMCX, N, QMA, SMA, SMB, SMC, SMP, SSMB, TNC, UHF, U.FL and 75 ohms cable assemblies can be made with the following 75 ohms connectors such as BNC, F, N, SMB, SMC, TNC and mini SMB .

☀ RF cable connectors can be connected on the coaxial cable includes: RG141/RG142/RG174/ RG178/RG179/RG180/ RG187/RG196/RG213/RG214/RG218/RG219/ RG223/RG303/RG316/RG316-DS/RG393/RG400/RG401/RG402/RG405/RG58U/1/2 / 7/8 / LMR195/ LMR240/LMR400,ect

☀ RF cable connectors can be produced to cable assemblies with many different cable types and custom lengths depending on your needs and applications.

☀ If you require a special RF cable assembly configuration not found here, you can create your own RF cable assembly configuration by calling our sales department.

Our Company:

1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.
2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.

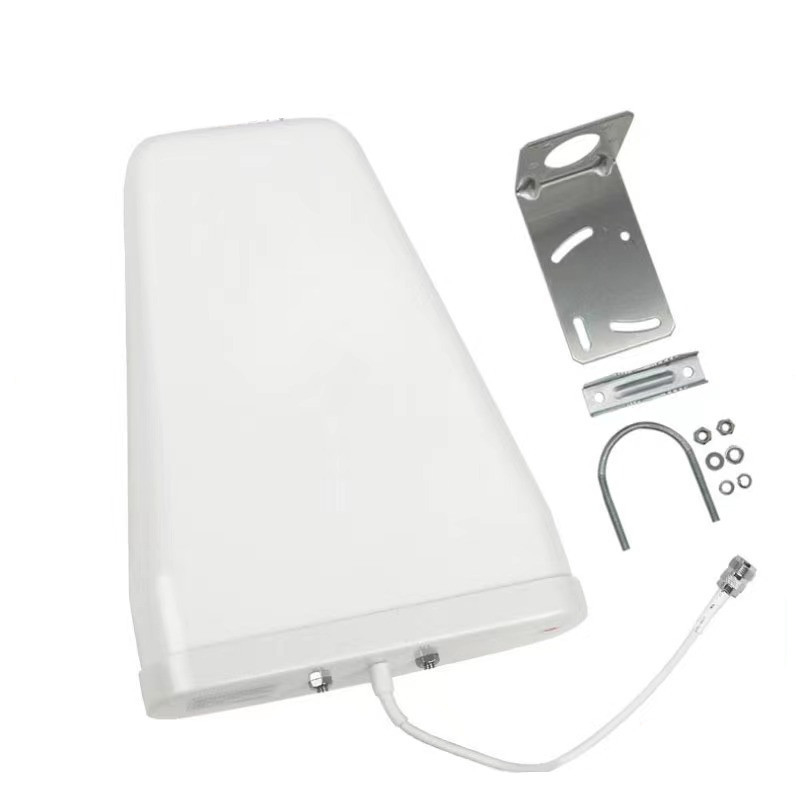

Outdoor Wide Band 4G LTE Antenna Directional 2700 MHz LPDA Patch Panel 0


Why Choose Us?

1. We are professional antenna and accessories mamufacturer for 10 years.


2. Our sales manager will reply your inquiry in 24 working hours.


3. Customized design is available, OEM are welcomed.


4. Excellent after-sales service.



1. Manufacturer or trader?
We have been owning a factory since established,The factory keeps developing as our business grows larger.


2. What's your MOQ?
Normally our MOQ is 50pcs. Small order is also available.


3. What about the lead time for production?
3-5 working days for samples, 10-15 working days for bulk order.


4. How is your product quality?
Our raw materials are purchased from qualified suppliers. And we have a strong quality control team


5. What's the warranty?

One year, 12 months.

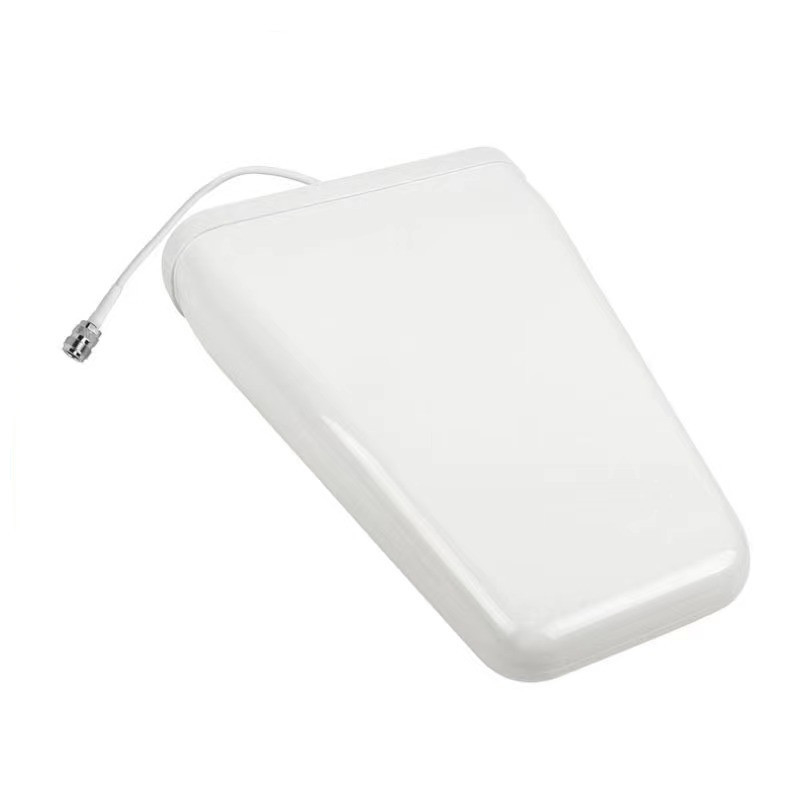

Outdoor Wide Band 4G LTE Antenna Directional 2700 MHz LPDA Patch Panel 1


Packaging & Shipping:

1. Usually we ship your order by sea or by air.

2. We do our best to ship your order within 1 week after receiving your payment
3. We'll tell you the tracking number once your order has been sent.

4. We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal.

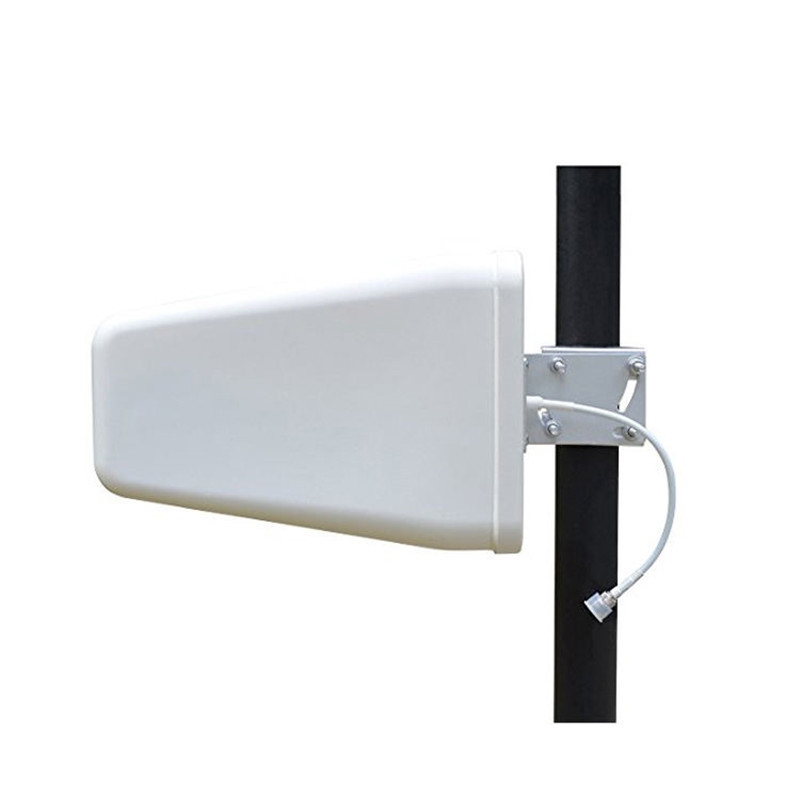

Outdoor Wide Band 4G LTE Antenna Directional 2700 MHz LPDA Patch Panel 2
