86304cy Sl005-Nd Alpha Wire Cable 4con 22awg Slate Shld 100'

86304cy Sl005-Nd Alpha Wire Cable 4con 22awg Slate Shld 100'

86304cy Alpha Wire Cable 4 con

22awg Alpha Wire Cable 4con

ISO 10993 Alpha Wire Cable

Place of Origin:

China

Brand Name:

Alpha Wire

Certification:

ROHS3

Model Number:

86304CY SL005

Contact Us

Request A Quote
Product Details
Payment & Shipping Terms
Minimum Order Quantity
1PCS
Price
USD240
Packaging Details
4-core multi-core cable slate 22 AWG foil, braided wire 100.0' (30.5m)
Delivery Time
Shipped in 9 days after payment
Payment Terms
L/C, T/T,Paypal, Western Union, MoneyGram, D/A, D/P
Supply Ability
1000000pcs
Product Description

What is it a cable?

cable, in electrical and electronic systems, a conductor or group of conductors for transmitting electric power or telecommunication signals from one place to another.



Product Properties:

TYPE DESCRIPTION
category Cables, wires
Multi-core wires
manufacturer Alpha Wire
series Xtra-Guard® Flex
wrap bobbin
Product status Sale
Cable type Multi-core
Number of conductors 4
Wire gauge 22 AWG
Number of wire strands 19/34
Conductor material Copper, tin-plated
Sheath (insulation) material Polyvinyl chloride (PVC)
Sheath (insulation) diameter 0.231"(5.87mm)
Shield type Foil, braided thread
length 100.0'(30.5m)
Sheath color Slate color
grade ISO 10993, UL Formula 2661
characteristic Biocompatibility
voltage 300 V
Operating temperature -
apply -
Sheath (insulation) thickness 0.0400"(1.016mm)
Conductor insulation Polyvinyl chloride (PVC)
Shielding material Aluminium; Copper, tin-plated
Shield coverage 100%,90%
Base product number 86304CY



Product Details:

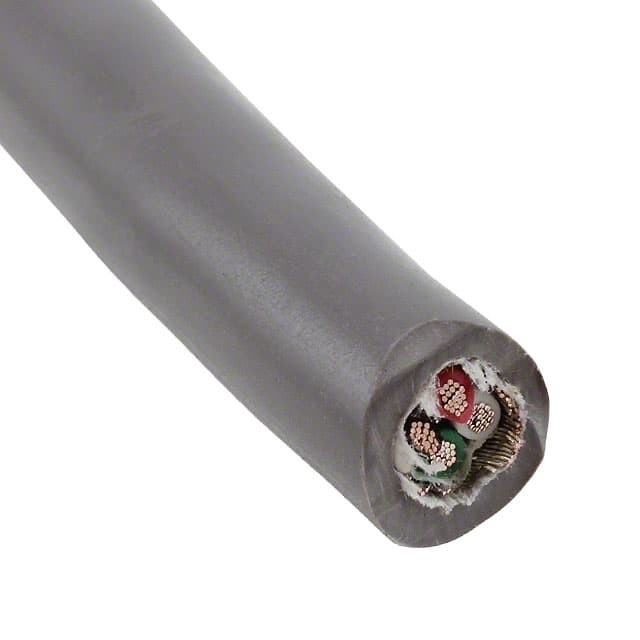

86304cy Sl005-Nd Alpha Wire Cable 4con 22awg Slate Shld 100' 0
